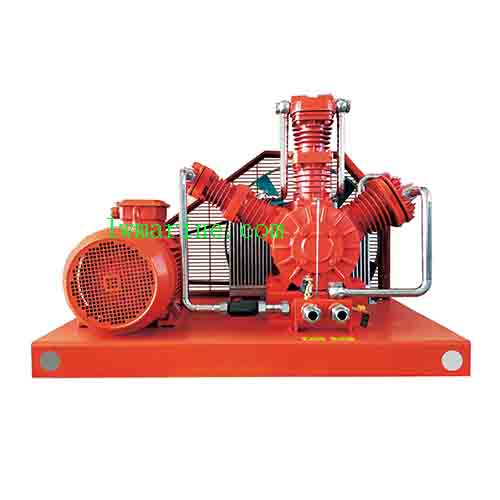

Marine Air-Cooled Compressor
Our LSHC-50A air-cooled compressor is a top-tier solution for delivering reliable compressed air in critical marine and industrial operations. With a robust 3.0MPa rated pressure and a capacity range of 25-45 m³/h, this vertical two-stage compressor is meticulously engineered for continuous heavy-duty service in the most demanding environments. Whether on ships, offshore platforms, or land-based equipment, our compressor ensures consistent performance and durability.
Key Features & Benefits:
✔ Multi-Application Design: Ideal for a wide range of applications, including ships, offshore platforms, and various land-based industrial equipment.
✔ Flexible Power Options: Compatible with both electric motors and diesel engines, providing versatility in power sources.
✔ Efficient Air-Cooled System: Eliminates the need for water, reducing maintenance and operational costs associated with water-cooled systems.
✔ Compact & Robust Construction: Features a space-saving vertical design with low vibration, ensuring stability and ease of installation.
✔ Custom Configurations: Available in both horizontal and vertical orientations, as well as air-cooled and water-cooled variants, to meet specific customer needs.
Technical Specifications:
LSHC-50A Model:
| Parameter | Specification |
|---|---|
| Model | LSHC-50A |
| Type | Vertical, Air-Cooled, Two-Stage |
| Rated Pressure | 3.0 MPa |
| Capacity Range | 25-45 m³/h (varies with RPM) |
| Speed Options | 900/1000/1200/1500 RPM |
| Power Range | 7.0-10.4 kW |
| Lubrication | Splash System |
| Drive Options | Direct or Belt Drive |
| Dimensions | 1180×680×900 mm |
CWF-60/1 Marine Low Pressure Air Compressor:
Our CWF-60/1 marine low pressure air compressor is another excellent choice for marine applications. With a displacement of 60 m³/h and a rated pressure of 1.0 MPa, it provides reliable performance for various marine needs.
Product Features:
- Multiple Compression Piston Types: Available in single row, V, and W configurations for secondary compression.
- Energy Efficient & Low Noise: Designed to minimize energy consumption and noise levels, extending the service life.
- Manual/Automatic Controls: Equipped with manual/automatic stop, start, and unloading relief functions for enhanced operational flexibility.
- Versatile Applications: Suitable for ship whistles, oil and gas stoves, and other ancillary equipment requiring compressed air.
- Easy Maintenance: Designed for straightforward maintenance, reducing downtime and operational costs.
Main Technical Parameters:
| Model | Displacement Capacity (m³/h) | Specified Pressure (MPa) | Rotating Speed (r/min) | Motor Power (kW/HP) | Dimension (L×W×H) mm | Weight (kg) |
|---|---|---|---|---|---|---|
| CWF-60/1 | 60 | 1.0 | 720 | 11/15 | 1340×660×960 | 360 |
Note: The description might be incorrect, please contact us for confirmation.
