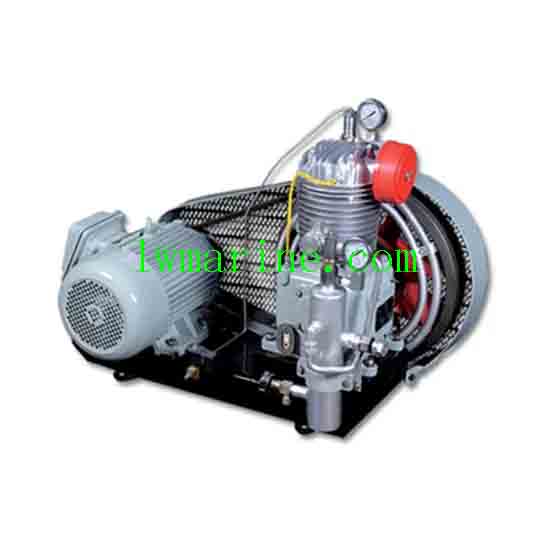

China CZ Series Marine Low Pressure Piston Type Marine Air Compressor
The China CZ Series Marine Low Pressure Piston Type Marine Air Compressor is a single-row, air-cooled, secondary compression piston-type compressor designed to deliver a displacement capacity of 10 m³/h with a specified discharge pressure of 3.0 MPa (approximately 30.4 kgf/cm²). This robust marine air compressor is specifically tailored to ensure the reliable operation of ships during emergency situations, playing a crucial role in maintaining safe navigation. It is powered by a diesel-engine model KM178F, providing dependable performance even in challenging conditions.
Key Product Features:
- General Compatibility: The main engine of the marine air compressor is compatible with the CZ-20/30 series marine air compressors, ensuring versatility and ease of integration.
- Marine Air-Cooled Diesel Engine: Equipped with a marine-grade air-cooled diesel engine, it offers efficient cooling and reliable operation in marine environments.
- Easy Operation: The starting mechanism involves pulling the centrifugal clutch by hand, making it user-friendly and straightforward to operate.
- High Efficiency & Reliability: Our air compressors are renowned for their high efficiency, lightweight design, compact volume, low noise levels, and reliable operation.
- Manual/Automatic Controls: Features manual or automatic stop, start, unloading, and pressure relief functions, providing flexibility and convenience in operation.
Customization Options:
We offer a range of customization options to meet specific customer requirements, including:
- Control functions for two main engines.
- Temperature control functionality.
- Inlet pressure controllers.
- High-pressure hoses for exhaust outlets.
Installation Dimensions for CZ Series Low Pressure Piston Type Marine Air Compressor:
| Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|
| CZ-5/10DFZK | 270 | 305 | 360 | 400 | 640 | 710 | 225 | 460 |
| CZ-6/10DFZK | 270 | 305 | 360 | 400 | 640 | 710 | 225 | 460 |
| CZ-10/10DFZK | 315 | 350 | 410 | 450 | 740 | 790 | 225 | 530 |
| … | … | … | … | … | … | … | … | … |
Technical Specifications for CZ Series Low Pressure Piston Type Marine Air Compressor:
| Type | Discharge Capacity (m³/h) | Discharge Pressure (kgf/cm²) | Speed (r/min) | Motor Power (KW) | Overall Size (L×W×H) | Weight (kg) |
|---|---|---|---|---|---|---|
| CZ-2.2/10F | 2.2 | 10 | 750 | 0.75 | 520×320×350 | 42 |
| CZ-5/10FZK | 5 | 10 | 750 | 1.5 | 710×360×460 | 90 |
| CZ-10/10FZK | 10 | 10 | 750 | 2.2 | 790×410×530 | 120 |
| … | … | … | … | … | … | … |
FAQs:
- Q: What is the primary application of the China CZ Series Marine Air Compressor?
- A: The primary application is to ensure reliable ship operation during emergency situations, contributing to safe navigation by providing a dependable source of compressed air.
- Q: What type of engine powers the marine air compressor?
- A: The marine air compressor is powered by a diesel-engine model KM178F, known for its reliability and efficiency in marine environments.
- Q: Can the marine air compressor be customized according to specific requirements?
- A: Yes, we offer a range of customization options, including control functions, temperature control, inlet pressure controllers, and high-pressure hoses for exhaust outlets.
- Q: What are the key features of the marine air compressors?
- A: Our air compressors are characterized by high efficiency, lightweight design, compact volume, low noise levels, and reliable operation, along with manual or automatic control functions.
- Q: How do I determine the right model and specifications for my ship?
- A: Our technical team can assist you in selecting the most suitable model and specifications based on your ship’s requirements and operational conditions.
Please Note: The description might be incorrect, please contact us for confirmation.
