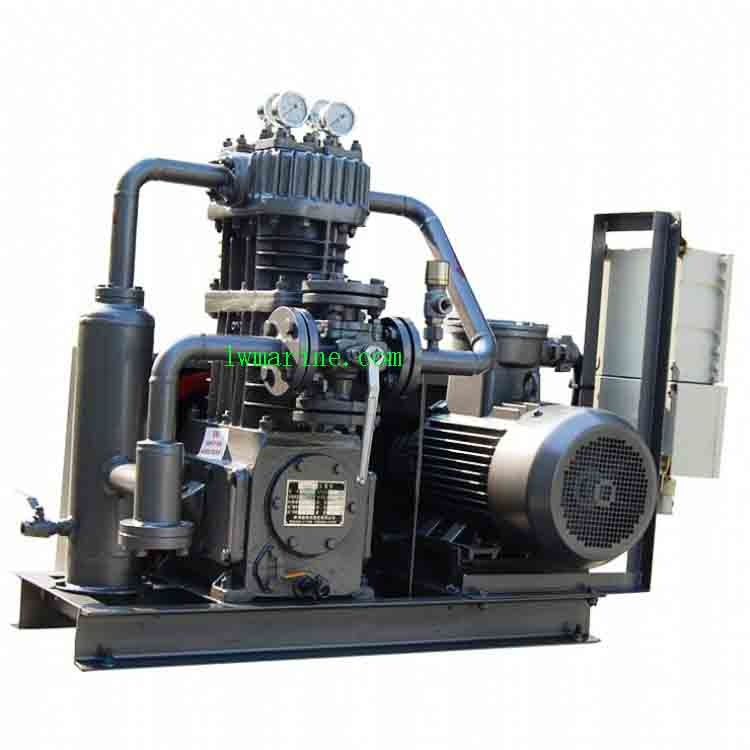

CZF-3.5/1 Marine Single Cylinder Air Compressor
The CZF-3.5/1 Marine Single Cylinder Air Compressor is a space-saving, energy-efficient solution designed for various shipboard pneumatic systems. With 3.5 m³/h capacity at 1.0 MPa pressure, this compact compressor delivers reliable performance for whistles, galley equipment, and auxiliary systems while maintaining low noise levels and minimal energy consumption.
Key Features & Benefits
✔ Compact Single-Row Design – Space-efficient (650×390×580mm) ideal for tight engine rooms
✔ Energy Efficient Operation – Low power consumption (0.75kW/1HP) reduces operating costs
✔ Marine-Grade Durability – Corrosion-resistant materials withstand harsh saltwater environments
✔ Low Maintenance – Simple structure with easy-access components
✔ Quiet Performance – Low-noise operation for crew comfort areas
Technical Specifications
| Model | Capacity (m³/h) | Pressure (MPa) | Speed (r/min) | Weight (kg) | Dimensions (mm) | Power |
|---|---|---|---|---|---|---|
| CZF-3.5/1 | 3.5 | 1.0 | 810 | 58 | 650×390×580 | 0.75kW (1HP) |
Note: The description might be incorrect, please contact us for confirmation.
