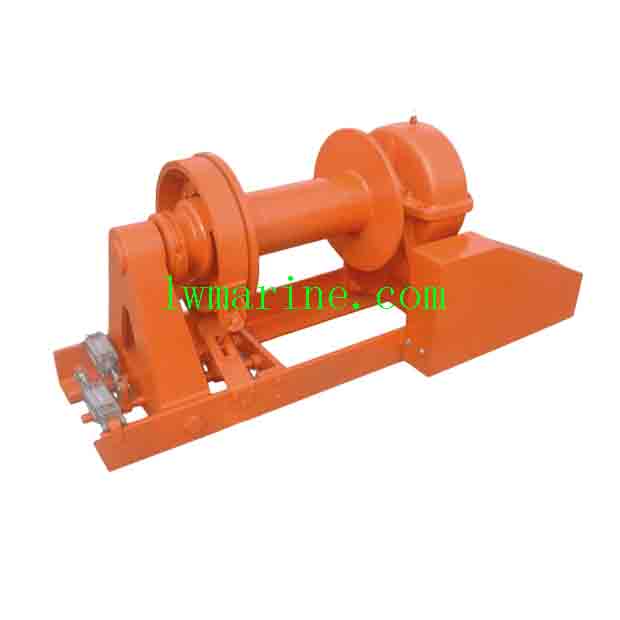

Turbine Worm Winch for Industrial Lifting and Pulling
Our Turbine Worm Winch series is engineered for reliability, safety, and efficiency in demanding applications. The innovative modular design integrates the brake, motor, and speed reducer into a compact triad structure, resulting in a small overall footprint and a robust, space-saving solution.
The core of its operation is the precision worm gear drive mechanism, renowned for its inherent and reliable self-locking capability, which provides fail-safe load holding without the risk of slippage. For enhanced durability and power transmission, these winches utilize hard-tooth surface gears, ensuring a longer operational life and consistent performance under heavy loads.
Advanced frequency conversion control allows for superior speed regulation, enabling smooth and controlled starts and stops to protect both the load and the equipment. Safety is paramount, which is why our winches are equipped with comprehensive scram protection and a mechanical interlock system, preventing unauthorized or unsafe operation.
Technical Specifications & Performance Data
| Model | Rated Pull (KGS) | Line Speed (M/min) | Motor Power (Kw) | Wire Rope Diameter (mm) | Drum Capacity (m) |
|---|---|---|---|---|---|
| First Layer / Middle / Full | First Layer / Middle / Full | ||||
| WJB-1 | 500 | 7.62 / – / 15.86 | 1.1 | 6.5 | 13.1 / – / 253 |
| WJB-2 | 500 | 9.76 / – / 22.27 | 1.5 | 6.5 | 13.1 / – / 253 |
| WJB-3 | 1000 | 6.71 / – / 12.2 | 1.5 | 8.0 | 12.5 / – / 152 |
| WJB-4 | 1000 | 10.37 / – / 19.25 | 2.2 | 8.0 | 12.5 / – / 152 |
| WJB-5 | 2000 | 6.40 / – / 14.34 | 2.2 | 12.0 | 18.3 / – / 348 |
| WJB-6 | 2000 | 10.68 / – / 23.79 | 3.0 | 12.0 | 18.3 / – / 348 |
| WJB-7 | 3000 | 7.32 / – / 12.8 | 3.0 | 13.0 | 20.1 / – / 235 |
| WJB-8 | 3000 | 10.68 / – / 18.59 | 5.5 | 13.0 | 20.1 / – / 235 |
| WJB-9 | 5000 | 8.23 / – / 14.34 | 5.5 | 16.0 | 23.8 / – / 302 |
| WJB-10 | 5000 | 11.90 / – / 19.51 | 7.5 | 16.0 | 23.8 / – / 302 |
Please Note: The description might be incorrect, please contact us for confirmation.
