China GB1392-85 Standard Marine Air Winch – Reliable Accommodation Ladder Hoisting Solution

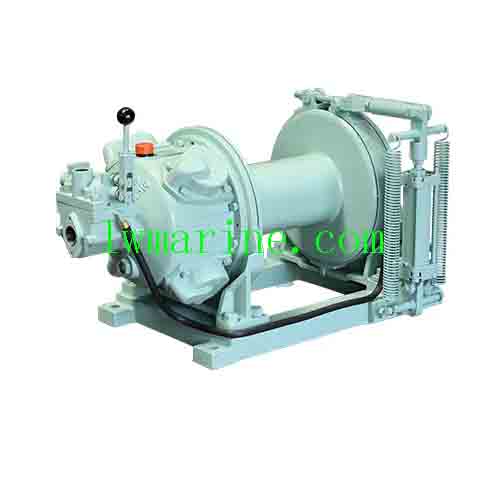

Engineered to meet GB1392-85 standards, this pneumatic marine air winch provides safe and efficient operation for marine accommodation ladder systems. Featuring a robust assembly including frame, drum, gear box, motor, and manual control handle, this winch delivers dependable performance in demanding marine environments. Ideal for vessel access systems and gangway operations, this air-powered solution ensures smooth lifting control where electrical equipment may pose safety concerns.
Technical Specifications
| Parameter | Model 1 | Model 2 |
|---|---|---|
| Working Load | 10 kN | 16 kN |
| Support Load | 30 kN | 48 kN |
| Wire Rope Diameter | 13 mm | 13-15 mm |
| Pneumatic Motor Power | 3.5-5.5 PS | 5.5-7 PS |
| Air Consumption | 3.5-5.5 m³/min | 5.5-7 m³/min |
| Operating Air Pressure | 0.5-0.7 MPa | 0.5-0.7 MPa |
| Hoisting Speed | >9.75 m/min | >9.75 m/min |
Please Note: The description might be incorrect, please contact us for confirmation.
