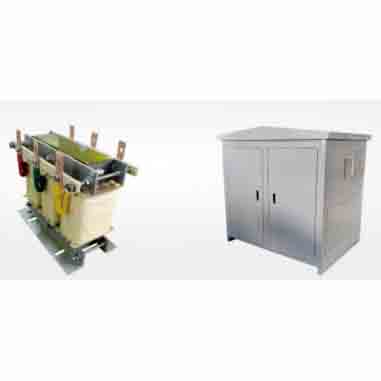

Three-phase CSD Transformer
Three-phase Transformer Rated Performance Data Parameters
| Model/Rated Capacity (kVA) | Primary Voltage (kV) | Secondary Voltage (kV) | No-load Loss (W) | Under Different Insulation Heat Resistance Levels (W) B | Under Different Insulation Heat Resistance Levels (W) F | Under Different Insulation Heat Resistance Levels (W) H | No-load Current (%) | Short-circuit Impedance (%) |
|---|---|---|---|---|---|---|---|---|
| CSD-1 | 55 | 75 | 80 | 85 | 18 | |||
| CSD-1.5 | 60 | 80 | 85 | 90 | 15 | |||
| CSD-2 | 70 | 90 | 100 | 105 | ||||
| CSD-2.5 | 80 | 105 | 115 | 120 | 14 | |||
| CSD-3 | 80 | 105 | 115 | 120 | 14 | |||
| CSD-4 | 85 | 130 | 140 | 150 | 13 | |||
| CSD-5 | 95 | 165 | 175 | 190 | 12 | |||
| CSD-6 | 110 | 195 | 205 | 225 | ||||
| CSD-6.3 | 110 | 195 | 205 | 225 | 11 | |||
| CSD-7 | 120 | 215 | 240 | 250 | ||||
| CSD-8 | 130 | 235 | 250 | 270 | ||||
| CSD-9 | 150 | 275 | 290 | 320 | 10 | |||
| CSD-10 | 160 | 290 | 310 | 330 | ||||
| CSD-12 | 180 | 320 | 350 | 380 | ||||
| CSD-15/16 | 200 | 370 | 395 | 420 | 9 | 3.5 | ||
| CSD-20 | 210 | 480 | 510 | 545 | 7 | |||
| CSD-25 | 230 | 528 | 560 | 600 | 6 | |||
| CSD-30 | 0.11 | 0.11 | 240 | 600 | 640 | 680 | 4.5 | |
| CSD-40 | 0.69 | 260 | 680 | 725 | 775 | 4 | ||
| CSD-50 | 0.69 | 275 | 990 | 1050 | 1125 | 3.5 | ||
| CSD-60 | 290 | 1250 | 1325 | 1420 | 3 | |||
| CSD-80 | 380 | 1450 | 1540 | 1650 | 3.0 | |||
| CSD-100 | 460 | 1840 | 1950 | 2090 | 2.5 | |||
| CSD-120 | 560 | 2140 | 2270 | 2430 | 2.2 | |||
| CSD-160 | 640 | 2300 | 2440 | 2615 | ||||
| CSD-200 | 760 | 2510 | 2665 | 2855 | 1.8 | |||
| CSD-250 | 820 | 2750 | 2915 | 3125 | ||||
| CSD-300 | 1020 | 3460 | 3670 | 3930 | ||||
| CSD-315 | 1020 | 3460 | 3670 | 3930 | ||||
| CSD-350 | 1120 | 3940 | 4050 | 4210 | 1.5 | |||
| CSD-400 | 1120 | 3970 | 4210 | 4510 | 4 | |||
| CSD-500 | 2660 | 7830 | 11625 | 13607 | ||||
| CSD-600 | 3300 | 9650 | 13650 | 16830 | ||||
| CSD-800 | 5280 | 14320 | 19800 | 21800 | 1.4 | |||
| CSD-1000 | 7650 | 21300 | 29800 | |||||
| CSD-1600 | 18600 | 56200 | 69500 | 79000 | 1.3 |
Note: The no-load loss, load loss, and impedance percentage listed for each capacity in the table are based on a 50Hz frequency power supply. For 60Hz frequency power supply, the loss can be referred to and executed accordingly. If lower loss values are required, the silicon steel sheet material can be adjusted in consultation with the customer. 500VA~1600VA are produced according to national standards.
Three-phase Transformer Dimensions
| Model | Dimensions(mm) L(max) | Dimensions(mm) W(max) | Dimensions(mm) H(max) | A | C | K |
|---|---|---|---|---|---|---|
| CSD-1 | 190 | 125 | 130 | 136 | 55 | M6 |
| CSD-1.5 | 220 | 150 | 230 | 176 | 66 | M6 |
| CSD-2 | 220 | 150 | 230 | 176 | 66 | M6 |
| CSD-2.5 | 260 | 160 | 260 | 200 | 121 | M6 |
| CSD-3 | 260 | 160 | 260 | 200 | 121 | M6 |
| CSD-4 | 260 | 165 | 200 | 224 | 125 | M6 |
| CSD-5 | 300 | 165 | 300 | 224 | 125 | M6 |
| CSD-6 | 300 | 220 | 250 | 254 | 120 | M10 |
| CSD-6.2 | 300 | 220 | 350 | 264 | 130 | M6 |
| CSD-7 | 260 | 220 | 350 | 264 | 120 | M10 |
| CSD-8 | 300 | 240 | 350 | 264 | 140 | M10 |
| CSD-9 | 300 | 240 | 350 | 264 | 140 | M10 |
| CSD-10 | 300 | 250 | 350 | 264 | 150 | M10 |
| CSD-12 | 260 | 220 | 350 | 264 | 130 | M10 |
| CSD-15/16 | 420 | 280 | 420 | 316 | 200 | M12 |
| CSD-20 | 420 | 250 | 420 | 316 | 200 | M12 |
| CSD-25 | 420 | 280 | 420 | 316 | 200 | M12 |
| CSD-30 | 420 | 230 | 460 | 256 | 215 | M12 |
| CSD-40 | 540 | 350 | 510 | 356 | 235 | M12 |
| CSD-50 | 540 | 350 | 510 | 356 | 235 | M12 |
| CSD-60 | 540 | 400 | 510 | 256 | 230 | M12 |
| CSD-70 | 540 | 420 | 510 | 356 | 300 | M12 |
| CSD-80 | 600 | 420 | 560 | 400 | 280 | M14 |
| CSD-100 | 600 | 430 | 560 | 400 | 300 | M14 |
| CSD-120 | 600 | 500 | 620 | 400 | 200 | M14 |
| CSD-160 | 600 | 550 | 620 | 400 | 400 | M14 |
| CSD-200 | 720 | 530 | 660 | 400 | 400 | M14 |
| CSD-250 | 1000 | 650 | 800 | 650 | 500 | M14 |
| CSD-300 | 1000 | 700 | 300 | 650 | 550 | M14 |
| CSD-315 | 1000 | 700 | 300 | 650 | 550 | M14 |
| CSD-350 | 1250 | 900 | 1000 | 850 | 750 | M16 |
| CSD-400 | 1250 | 900 | 1000 | 850 | 750 | M16 |
| CSD-500 | 1250 | 900 | 1200 | 800 | 300 | M16 |
| CSD-600 | 1300 | 950 | 1250 | 980 | 900 | M16 |
| CSD-800 | 1350 | 1000 | 1450 | 900 | 950 | M18 |
| CSD-1000 | 1500 | 1200 | 1650 | 1000 | 1100 | M18 |
| CSD-1600 | 1300 | 1400 | 1850 | 1050 | 1200 | M20 |
(Diagram provided in the source image showing Appearance/L/W/H dimensions and mounting dimensions A/C/K)
Note: The description may be different with the product, please contact us for quotation.
