Table Model Magnetic Compass

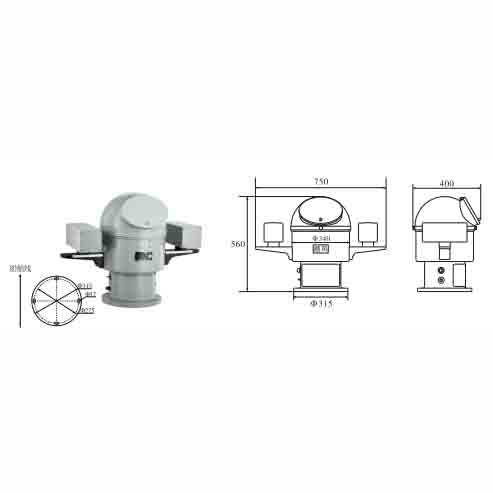

CPT-190 Table Model Magnetic Compass
(Diagram layout provided in the source image)
CPT-165A Table Model Magnetic Compass
(Diagram layout provided in the source image)
Standard Specifications (CPT-190 & CPT-165A)
| Type of compass | Bearing Compass |
|---|---|
| Compass bowl | CPT-190: Card dia 190mm; CPT-165A: Card dia 165mm |
| Power supply | AC100V~220V/DC24V |
| Type approvals | CCS, RS |
| On-shaping head | CPT-190: Width 560mm, Aperture Φ315mm; CPT-165A: Width 530mm, Aperture Φ316mm |
| Net weight | CPT-190: 26.4kg; CPT-165A: 22.05kg |
Standard Accessories (CPT-190 & CPT-165A)
| Correcting Magnets for B,C and H | 14 |
|---|---|
| Quadrantal correctors | 11 |
| Flinders bars | 8 |
| Spare bulbs | 1(24V/6W) |
Technical Data (CPT-190 & CPT-165A)
| Using temperature | -30℃~+60℃ |
|---|---|
| Inducing rudder | ±1°, 0.5° |
| Heel angle | ±0.5° |
| Heel-and-bank | ±0.09° |
Type CPT-130A Table Model Magnetic Compass
(Diagram layout provided in the source image)
Type CPT-130B Table Model Magnetic Compass
(Diagram layout provided in the source image)
Type CPT-130D Table Model Magnetic Compass
(Diagram layout provided in the source image)
Standard Specifications (CPT-130A, B, D)
| Type of compass | Steering Compass |
|---|---|
| Compass bowl | Card dia 130mm |
| Power supply | DC24V |
| Type approvals | CCS, RS |
| On-shaping head | CPT-130A: Width 360mm, Aperture Φ160mm; CPT-130B: Width 380mm, Aperture Φ180mm; CPT-130D: Width 380mm, Aperture Φ180mm |
| Net weight | CPT-130A: 8.1kg; CPT-130B: 7.6kg; CPT-130D: 3.9kg |
Standard Accessories (CPT-130A, B, D)
| Correcting Magnets for B,C and H | CPT-130A: 10; CPT-130B: 8 |
|---|---|
| Quadrantal correctors | CPT-130A: 8; CPT-130B: 5 |
| Flinders bars | CPT-130A: 2; CPT-130B: 2 |
Technical Data (CPT-130A, B, D)
| Using temperature | -30℃~+60℃ |
|---|---|
| Inducing rudder | ±1°, 0.5° |
| Heel angle | ±0.5° |
| Heel-and-bank | ±0.09° |
Note: The description may be different with the product, please contact us for quotation.
