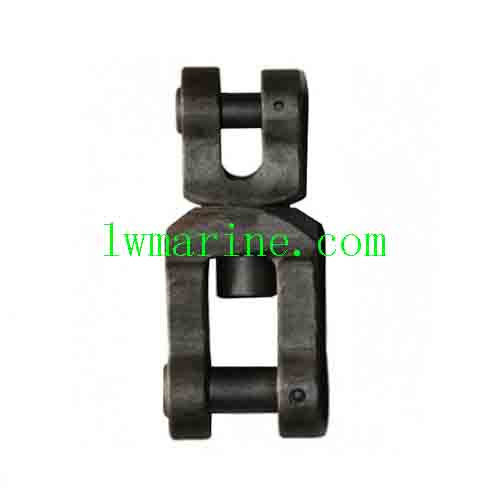

Swivel Shackle Type B

Swivel Shackle Type B

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Swivel Shackle Type B

Swivel Shackle Type B

Technique Requirement

  1. All parts surface shall be free from defects like cracks or inter layers.

  2. Tolerance is ±2.5%.

  3. Other technical as LR rules.

  4. Material: the grade of material must be the same as the chain cable.

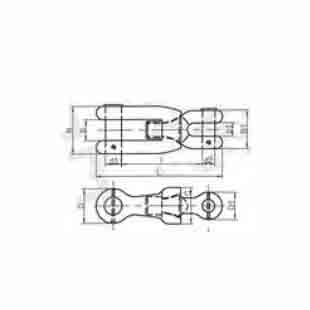

Apply to Anchor Chain’s Specification Swivel Shackle(B-Type) AM2 AM3(mm)
L l B b B1 b1 D D1 d1 d2 c
111 1483 955 555 244 444 155 389 333 189 144 422
107 1430 920 535 235 428 150 375 321 182 139 407
105 1403 903 525 231 420 147 368 315 178 137 399
102 1363 877 510 224 408 143 357 306 173 133 388
100 1336 860 500 220 400 140 350 300 170 130 380
97 1296 834 485 213 288 136 340 291 165 126 369
95 1269 817 475 209 380 133 333 285 162 124 361
92 1229 791 460 202 368 129 322 276 156 120 350
90 1202 774 450 198 360 126 315 270 153 117 342
87 1162 748 435 191 348 122 305 261 148 113 331
84 1122 722 420 185 336 118 294 252 142 109 319
81 1082 697 405 178 324 113 286 243 138 105 308
78 1042 671 390 172 312 109 273 234 133 101 296
76 1015 654 380 167 304 106 268 228 130 99 289
73 975 628 365 161 292 102 255 219 124 95 277
70 935 602 350 154 280 98 245 210 119 91 266
68 908 585 340 150 272 95 238 204 116 88 258
66 882 568 330 145 264 92 231 198 112 86 251
64 855 550 320 141 256 90 224 192 109 83 243
62 828 533 310 136 248 87 217 186 105 81 236
60 802 516 300 132 240 84 210 180 102 78 228
58 775 499 290 128 232 81 203 174 99 75 220
56 748 482 280 123 224 78 196 168 95 73 213
54 721 464 270 119 216 76 189 162 92 70 205
52 695 447 260 114 208 73 182 156 88 68 198
50 668 430 250 110 200 70 175 150 85 65 190

Note: The description may be different with the product, please contact us for quotation.
