Swivel Shackle Type A

Swivel Shackle Type A

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Swivel Shackle Type A

Swivel Shackle Type A

Technique Requirement

  1. All parts surface shall be free from defects like cracks or inter layers.

  2. Tolerance is ±2.5%.

  3. Other technical as LR rules.

  4. Material: the grade of material must be the same as the chain cable.

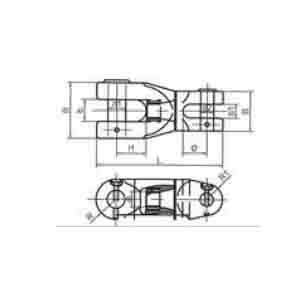

Apply to Anchor Chain’s Specification Swivel Shackle (A-Type) AM2(mm)
L B B1 b b1 R R1 d d1 d2 L1 L2 d3
111 114 117 1498 660 460 225 165 230 188 200 154 361 315 M180
105 107 1398 600 420 220 150 210 176 185 140 335 269 M175
100 102 1308 571 412 210 143 206 164 175 133 300 253 M160
90 92 95 1206 532 380 200 133 190 152 165 124 280 231 M150
84 87 1118 487 352 180 122 176 140 150 113 260 214 M140
78 81 1042 454 328 172 113 164 130 140 106 240 193 M130
70 73 76 965 426 304 168 106 152 120 130 100 225 164 M120
64 66 68 868 380 265 145 95 136 106 116 88 200 170 M110
58 60 62 787 348 252 135 88 126 100 106 82 185 152 M100
54 56 712 314 218 120 78 109 88 102 73 168 135 M90
50 52 712 290 202 110 73 109 88 96 68 168 135 M90

Note: The description may be different with the product, please contact us for quotation.
