China Studless Link Anchor Chain
Product Overview

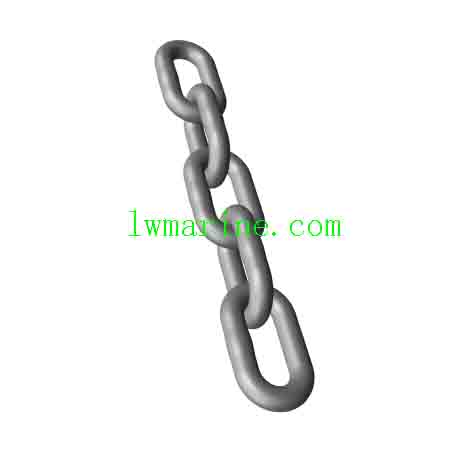

Our Studless Link Anchor Chain, also recognized as Open Link Anchor Chain, is a top-tier choice for maritime applications requiring robust and reliable anchoring systems. This chain is available in a comprehensive size range from 12.5mm to 50mm, ensuring compatibility with a wide variety of vessels and anchoring needs. We pride ourselves on delivering high-quality products with fast turnaround times, making us a preferred supplier in the marine industry.
Key Features & Long-Tail Keywords
- Studless Link Design: Also known as Open Link Anchor Chain, offers flexibility and ease of handling.
- Size Range: From 12.5mm to 50mm, catering to diverse maritime anchoring requirements.
- Material Quality: Crafted from CM490 and CM690 steel, ensuring superior strength and durability.
- Grade Options: Available in BM2 and BM3 grades, meeting different load-bearing standards.
- Black Painted Finish: Provides corrosion resistance and enhances aesthetic appeal.
- Link Size Specification: 6DX3.6D (D: diameter), ensuring precise fit and performance.
- Marine Anchor Chain for Ships: Specifically designed for secure anchoring of various vessel types.
- High-Strength Anchor Chain: Capable of withstanding extreme marine conditions.
- Fast Delivery Anchor Chain Supplier: Ensuring timely replacement and maintenance.
Main Specification Table
| Diameter (mm) | Chain Link Size (Outside Width x Length, mm) | BM2 Approx. Weight (27.5m, kg) | BM2 Proof Load (KN) | BM2 Breaking Load (KN) | BM3 Approx. Weight (27.5m, kg) | BM3 Proof Load (KN) | BM3 Breaking Load (KN) |
|---|---|---|---|---|---|---|---|
| 12.5 | 75 x 45 | 85.41 | 41.2 | 82.6 | – | – | – |
| 14 | 84 x 50.4 | 106.55 | 51 | 101.9 | – | – | – |
| 16 | 96 x 57.6 | 139.43 | 66.2 | 132.3 | – | – | – |
| 17.5 | 105 x 63 | 178.35 | 78.89 | 157.78 | – | – | – |
| 19 | 114 x 68.4 | 217.68 | 93.6 | 187.2 | – | – | – |
| 20.5 | 123 x 73.8 | 229.14 | 108.64 | 217.27 | – | – | – |
| 22 | 132 x 79.2 | 264.49 | 125.4 | 250.9 | – | – | – |
| 24 | 144 x 86.4 | 341.82 | 149.9 | 298.9 | – | – | – |
| 26 | 156 x 93.6 | 369.94 | 175.4 | 350.8 | – | – | – |
| 28 | 168 x 100.8 | 427.04 | 203.8 | 406.7 | – | – | – |
| 30 | 180 x 108 | 490.98 | 234.2 | 467.5 | – | – | – |
| 32 | 192 x 115.2 | 559.65 | 265.6 | 531.2 | – | – | – |
| 34 | 204 x 122.4 | 671.52 | 299.9 | 599.8 | – | – | – |
| 36 | 216 x 129.6 | 707.85 | 336.1 | 672.3 | – | – | – |
| 38 | 228 x 136.8 | 788.98 | 374.4 | 748.7 | – | – | – |
| 40 | 240 x 144 | 869.36 | 414.5 | 829.1 | – | – | – |
| 42 | 252 x 151.2 | 959.3 | 457.7 | 915.3 | – | – | – |
| 44 | 264 x 158.4 | 1111.25 | 502.7 | 999.6 | – | – | – |
| 46 | 276 x 165.6 | 1152.07 | 548.8 | 1097.6 | – | – | – |
| 48 | 288 x 172.8 | 1256.26 | 597.8 | 1195.6 | – | – | – |
| 50 | 300 x 180 | 1360.41 | 648.8 | 1239.6 | – | – | – |
| (Note: The BM3 specifications are not fully listed here due to space constraints but are available upon request.) |
FAQs
Q1: What is the difference between a studless link anchor chain and a stud link anchor chain?
A1: A studless link anchor chain, also known as an open link anchor chain, has no studs (crossbars) within the links, making it more flexible and easier to handle. In contrast, a stud link anchor chain has studs that increase the strength and wear resistance of the chain.
Q2: What materials are used to make your studless link anchor chains?
A2: Our studless link anchor chains are crafted from high-quality CM490 and CM690 steel, ensuring superior strength and durability in marine environments.
Q3: Can I get a custom size for my studless link anchor chain?
A3: Yes, we offer custom sizes to meet specific anchoring requirements. Please contact us with your specifications for a quote.
Q4: How do I determine the right size of anchor chain for my vessel?
A4: The size of the anchor chain depends on several factors, including the vessel’s size, weight, and anchoring conditions. We recommend consulting with a marine expert or referring to industry standards to determine the appropriate chain size.
Q5: What is the delivery time for your studless link anchor chains?
A5: We pride ourselves on fast delivery times. The exact delivery time will depend on the order quantity and destination. Please contact us for an estimated delivery time for your specific order.
Please Note: The description might be incorrect, please contact us for confirmation.
