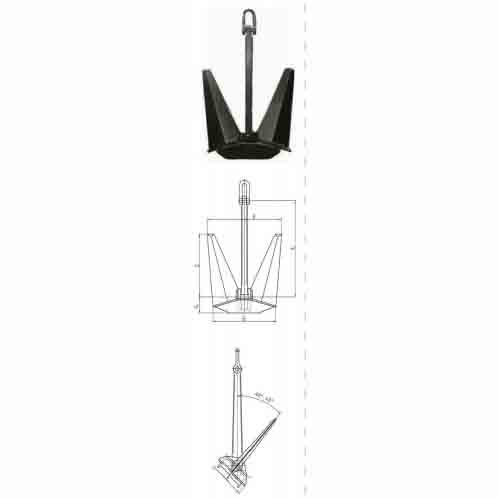

POOL ANCHOR (TYPEN)
| Nominal Weight (Kg) | A | B | B1 | C | C1 | H |
|---|---|---|---|---|---|---|
| 20 | 455 | 385 | 325 | 300 | 75 | 185 |
| 30 | 525 | 440 | 372 | 344 | 86 | 213 |
| 40 | 570 | 480 | 410 | 370 | 95 | 235 |
| 50 | 614 | 517 | 442 | 398 | 102 | 253 |
| 60 | 653 | 550 | 470 | 425 | 110 | 270 |
| 70 | 689 | 583 | 492 | 450 | 115 | 282 |
| 80 | 720 | 610 | 515 | 470 | 120 | 295 |
| 100 | 770 | 655 | 555 | 505 | 130 | 320 |
| 120 | 825 | 700 | 595 | 540 | 135 | 340 |
| 160 | 905 | 785 | 650 | 590 | 150 | 370 |
| 200 | 975 | 825 | 700 | 640 | 160 | 400 |
| 240 | 1040 | 880 | 745 | 685 | 175 | 430 |
| 280 | 1090 | 925 | 780 | 715 | 180 | 450 |
| 320 | 1140 | 965 | 815 | 750 | 190 | 470 |
| 360 | 1190 | 1005 | 855 | 780 | 195 | 490 |
| 400 | 1230 | 1040 | 885 | 805 | 205 | 505 |
| 440 | 1270 | 1075 | 910 | 830 | 210 | 520 |
| 480 | 1300 | 1100 | 935 | 855 | 215 | 535 |
| 520 | 1340 | 1135 | 960 | 875 | 220 | 550 |
| 560 | 1375 | 1165 | 985 | 900 | 230 | 565 |
| 600 | 1410 | 1195 | 1010 | 920 | 235 | 580 |
| 640 | 1440 | 1220 | 1035 | 940 | 240 | 590 |
| 720 | 1495 | 1265 | 1075 | 975 | 248 | 610 |
| 800 | 1520 | 1290 | 1090 | 1080 | 250 | 630 |
| 860 | 1550 | 1310 | 1115 | 1015 | 255 | 635 |
| 900 | 1615 | 1365 | 1160 | 1055 | 270 | 665 |
| 1000 | 1670 | 1410 | 1200 | 1090 | 275 | 670 |
| 1200 | 1800 | 1520 | 1290 | 1175 | 300 | 740 |
| 1500 | 1910 | 1615 | 1370 | 1250 | 315 | 765 |
| 1750 | 2015 | 1705 | 1445 | 1320 | 335 | 795 |
| 2000 | 2080 | 1760 | 1500 | 1370 | 345 | 825 |
| 2250 | 2165 | 1850 | 1570 | 1430 | 340 | 850 |
| 2500 | 2240 | 1910 | 1620 | 1510 | 350 | 830 |
| 2900 | 2330 | 1980 | 1680 | 1550 | 360 | 895 |
| 3200 | 2390 | 2040 | 1730 | 1600 | 365 | 905 |
| 3500 | 2470 | 2110 | 1760 | 1610 | 380 | 910 |
| 3800 | 2580 | 2190 | 1820 | 1670 | 390 | 945 |
| 4050 | 2660 | 2260 | 1880 | 1720 | 400 | 965 |
| 4750 | 2730 | 2330 | 1950 | 1780 | 420 | 1010 |
| 5250 | 2820 | 2410 | 2010 | 1840 | 430 | 1040 |
| 5800 | 2910 | 2490 | 2040 | 1900 | 450 | 1060 |
| 6400 | 3010 | 2570 | 2150 | 1980 | 460 | 1110 |
| 7050 | 3110 | 2660 | 2220 | 2030 | 470 | 1150 |
| 7600 | 3250 | 2780 | 2350 | 2080 | 480 | 1160 |
| 8800 | 3320 | 2840 | 2370 | 2160 | 510 | 1225 |
| 9500 | 3430 | 2930 | 2450 | 2240 | 520 | 1270 |
| 10600 | 3550 | 3030 | 2530 | 2310 | 540 | 1310 |
| 11800 | 3700 | 3160 | 2680 | 2420 | 560 | 1350 |
| 12800 | 3790 | 3240 | 2700 | 2470 | 580 | 1400 |
| 14200 | 3930 | 3350 | 2700 | 2550 | 600 | 1450 |
| 15700 | 4030 | 3450 | 2800 | 2620 | 610 | 1500 |
| 17200 | 4150 | 3550 | 2960 | 2710 | 630 | 1540 |
Note: The description may be different with the product, please contact us for quotation.
