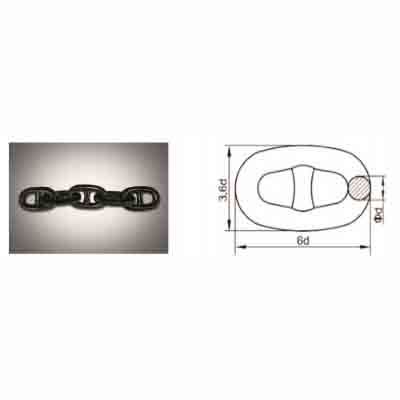

Anchor Chains

Anchor Chains

Class Certificate: Please check with us when order.
Delivery Time: 15-30 days
Place of Origin: China
Packing Details: Export standard packaging.

Category:

Anchor Chains

Break Load & Proof Load & Quality

Diameter Of Chain (mm) Break Load (AM1/AM2/AM3 KN) Proof Load (AM1/AM2/AM3 KN) Quality Approx.(kg/m)
11 52/72/102 36/52/72 2.65
12.5 66/92/132 46/66/92 3.42
14 82/116/165 58/82/116 4.29
16 107/150/216 76/107/150 5.61
17.5 127/179/256 89/127/179 6.71
19 150/211/301 105/150/211 7.91
20.5 175/244/349 123/175/244 9.27
22 200/280/401 140/200/280 10.6
24 237/332/476 167/237/332 12.61
26 278/389/556 194/278/389 14.8
28 321/449/642 225/321/449 17.17
30 368/514/735 257/368/514 19.71
32 417/583/833 291/417/583 22.43
34 468/655/937 328/468/655 25.32
36 523/732/1050 366/523/732 28.38
38 581/812/1160 406/581/812 31.62
40 640/895/1280 448/640/895 35.04
42 703/981/1400 492/703/981 38.63
44 769/1080/1540 538/769/1080 42.4
46 837/1170/1680 585/837/1170 46.34
48 908/1270/1810 635/908/1270 50.46
50 981/1370/1960 686/981/1370 54.75
52 1060/1480/2110 739/1060/1480 59.22
56 1220/1710/2430 851/1220/1710 68.68
58 1290/1810/2600 909/1290/1810 73.67
60 1380/1940/2770 969/1380/1940 78.84
62 1470/2060/2940 1030/1470/2060 84.18
64 1560/2190/3130 1100/1560/2190 89.69
66 1660/2310/3300 1160/1660/2310 95.4
68 1750/2450/3500 1230/1750/2450 101.3
70 1840/2580/3690 1290/1840/2580 107.3
76 2150/3010/4300 1500/2150/3010 126.5
81 2410/3380/4820 1690/2410/3380 143.69
84 2580/3610/5160 1800/2580/3610 154.53
87 2750/3850/5500 1920/2750/3850 165.76
90 2920/4090/5840 2050/2920/4090 177.39
92 3040/4260/6080 2130/3040/4260 185.36
97 3340/4680/6690 2340/3340/4680 206.06
102 3660/5120/7320 2560/3660/5120 227.85
China Anchor Chains
China Anchor Chains

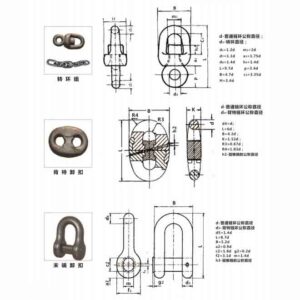

Anchor Chain Attachment

Dimensions

Common Chain Ring

  • d – Common chain ring nominal diameter
  • ds – Turn ring diameter
    • ds = 1.2d; m1 = 2d;
    • d1 = 1.1d; a1 = 1.75d;
    • d2 = 1.4d; h1 = 1.4d;
    • L = 9.7d; p = 3.4d;
    • B = 4.7d; c1 = 3.35d;
    • H = 3.4d

Back-shaped Chain Ring

  • d – Common chain ring nominal diameter
  • ds – Back-shaped chain ring nominal diameter
    • d4 = d;
    • L = 6d;
    • B = 4.2d;
    • K = 1.52d;
    • R3 = 0.67d;
    • R4 = 1.83d;
    • h2 – Cone pin nominal diameter

D-ring

  • d – Common chain ring nominal diameter
  • ds – Back-shaped chain ring nominal diameter
    • d5 = 1.4d;
    • L = 8.7d;
    • B = 5.2d;
    • a2 = 0.9d;
    • c2 = 1.8d; g2 = 0.2d;
    • h3 – Cone pin nominal diameter
    • f2 = 3.1d; m = 1.4d
