STEEL DOUBLE LEAF QUICK ACTION WEATHERTIGHT DOOR

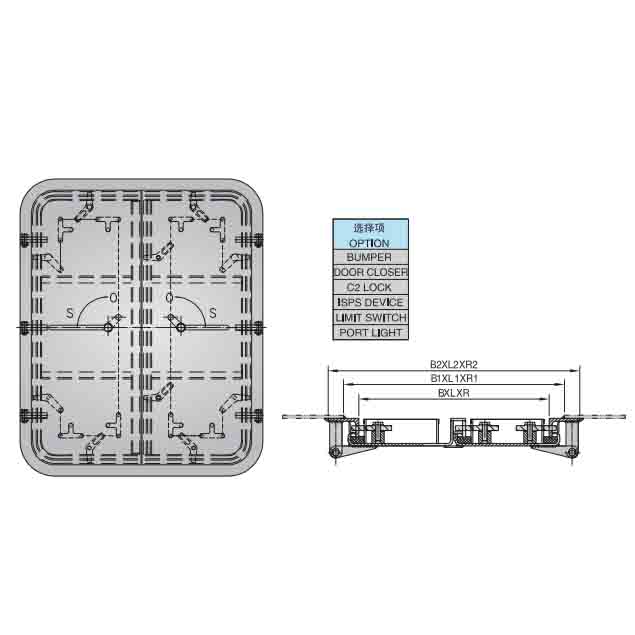

Technical diagram of the steel double-leaf quick action weathertight door, showing top-view with detailed dimensions labeled as BXLXR, B1XL1XR1, B2XL2XR2, and a table of optional components on the right side listing: bumper, door closer, C2 lock, ISPS device, limit switch, port light
| Size of Doorway BXL | Size of B.H. Opening B1XL1XR1 | Outer Size B2XL2XR2 | Door Leaf Thickness T (mm) | Weight (KG) |
|---|---|---|---|---|
| 1000X1600XR100 | 1100X1700XR150 | 1200X1800XR200 | 6 | 203 |
| 8 | 241 | |||
| 1200X1600XR100 | 1300X1700XR150 | 1400X1800XR200 | 6 | 230 |
| 8 | 265 | |||
| 1000X1700XR100 | 1100X1800XR150 | 1200X1900XR200 | 6 | 216 |
| 8 | 247 | |||
| 1200X1700XR100 | 1300X1800XR150 | 1400X1900XR200 | 6 | 241 |
| 8 | 278 | |||
| 1200X1800XR100 | 1300X1900XR150 | 1400X2000XR200 | 6 | 250 |
| 8 | 289 |
Marking Example:
For a doorway size of 1000X1600 with a door panel thickness of 8mm, the steel double-leaf quick action weathertight door is marked as: Steel double-leaf quick action weathertight door 1000X1600-8-5.1&6.1 JY002MS-00.
