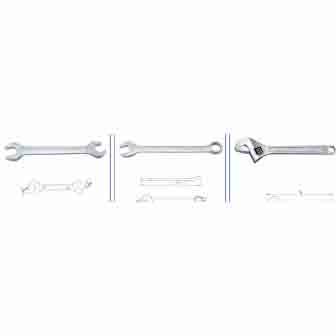

Stainless Steel Double-head Open-end Wrench
Double Head Open End Wrench
• Application: Used for fastening or disassembling bolts and nuts.
• Material: 304 Stainless steel
| Model | S1/S2 (mm) | Length L (mm) | Weight (kg) |
|---|---|---|---|
| 5010-0057 | 5.5*7 | 110 | 0.03 |
| 5010-0068 | 6*8 | 120 | 0.04 |
| 5010-0087 | 8*7 | 120 | 0.04 |
| 5010-0810 | 8*10 | 125 | 0.05 |
| 5010-0911 | 9*11 | 135 | 0.06 |
| 5010-1012 | 10*12 | 135 | 0.06 |
| 5010-1213 | 12*13 | 145 | 0.08 |
| 5010-1214 | 12*14 | 145 | 0.08 |
| 5010-1415 | 14*15 | 165 | 0.09 |
| 5010-1417 | 14*17 | 165 | 0.11 |
| 5010-1618 | 16*18 | 185 | 0.15 |
| 5010-1719 | 17*19 | 185 | 0.15 |
| 5010-1821 | 18*21 | 200 | 0.19 |
| 5010-1922 | 19*22 | 200 | 0.20 |
| 5010-2123 | 21*23 | 220 | 0.26 |
| 5010-2224 | 22*24 | 235 | 0.30 |
| 5010-2427 | 24*27 | 255 | 0.40 |
| 5010-2730 | 27*30 | 275 | 0.45 |
| 5010-3032 | 30*32 | 295 | 0.60 |
| 5010-3234 | 32*34 | 315 | 0.65 |
| 5010-3436 | 34*36 | 320 | 0.75 |
| 5010-3641 | 36*41 | 350 | 0.85 |
| 5010-4146 | 41*46 | 380 | 0.95 |
| 5010-4650 | 46*50 | 420 | 1.05 |
| 5010-5055 | 50*55 | 450 | 1.20 |
| 5010-5560 | 55*60 | 480 | 1.35 |
Stainless Steel Double-head Open-end Wrench Set
Double Head Open End Wrench Set
• Application: Used for fastening or disassembling bolts and nuts.
• Material: 304 Stainless steel
| Model | Size (mm) | Weight (g) |
|---|---|---|
| 5011/06 | 6*7/8*10/10*12/12*14/14*17/17*19/19*22/22*24 | 1500 |
| 5011/08 | 8*10/10*12/12*14/14*17/17*19/19*22 | 1100 |
| 5011/10 | 10*12/12*14/14*17/17*19/19*22 | 1100 |
| 5011/12 | 12*14/14*17/17*19/19*22/22*24 | 1200 |
| 5011/14 | 14*17/17*19/19*22/22*24/24*27 | 1600 |
| 5011/16 | 19*22/22*24/24*27/27*30/30*32 | 2500 |
| 5011/18 | 14*17/17*19/19*22/22*24/24*27/27*30/30*32 | 3500 |
5015 Stainless Steel Double-use Wrench
Combination Wrench
• Application: Open-end and box-end double-use, can be used in two ways, open-end is suitable for narrow spaces, box-end is suitable for large torque.
• Material: 304 Stainless steel
| Model | S (mm) | Length L (mm) | Weight (kg) |
|---|---|---|---|
| 5015-08 | 8 | 110 | 0.05 |
| 5015-10 | 10 | 130 | 0.08 |
| 5015-12 | 12 | 140 | 0.12 |
| 5015-13 | 13 | 150 | 0.13 |
| 5015-14 | 14 | 155 | 0.14 |
| 5015-15 | 15 | 160 | 0.15 |
| 5015-16 | 16 | 165 | 0.16 |
| 5015-17 | 17 | 180 | 0.17 |
| 5015-18 | 18 | 185 | 0.18 |
| 5015-19 | 19 | 190 | 0.19 |
| 5015-21 | 21 | 205 | 0.21 |
| 5015-22 | 22 | 215 | 0.22 |
| 5015-24 | 24 | 230 | 0.24 |
| 5015-27 | 27 | 250 | 0.27 |
| 5015-30 | 30 | 270 | 0.30 |
Stainless Steel Double-use Wrench Set
Combination Wrench
• Material: 304 Stainless steel
| Model | Size (mm) | Weight (g) |
|---|---|---|
| 5016/06 | 8/10/12/13/14/15/16/17/18/19 | 1000 |
| 5016/08 | 8/10/12/13/14/15/16/17/18/19/21/22/24 | 1490 |
| 5016/10 | 8/10/12/13/14/15/16/17/18/19/21/22/24/27 | 2500 |
| 5016/12 | 8/10/12/13/14/15/16/17/18/19/21/22/24/27/30 | 3800 |
| 5016/16 | 8/10/12/13/14/15/16/17/18/19/21/22/24/27/30/32/34/36 | 6900 |
5019 Stainless Steel Adjustable Wrench
Adjustable Wrench
• Application: A wrench for turning hexagonal bolts and nuts with different specifications.
• Material: 304 Stainless steel
| Model | L (mm) | Max Opening (mm) | Weight (kg) |
|---|---|---|---|
| 5019-150 | 150 | 20 | 0.24 |
| 5019-200 | 200 | 24 | 0.36 |
| 5019-250 | 250 | 28 | 0.45 |
| 5019-300 | 300 | 36 | 0.55 |
| 5019-375 | 375 | 46 | 0.88 |
| 5019-450 | 450 | 55 | 1.38 |
| 5019-600 | 600 | 65 | 2.20 |
5020 Stainless Steel Adjustable Hook Wrench
Adjustable Hook Wrench
• Application: Suitable for fastening or disassembling round nuts on machine tools or mechanical equipment. This product is an adjustable hook wrench, which is convenient to use.
• Material: 304 Stainless steel
| Model | S (mm) | L (mm) | Weight (kg) |
|---|---|---|---|
| 5020-061 | 19-50 | 162 | 0.15 |
| 5020-062 | 33-80 | 192 | 0.25 |
| 5020-063 | 50-90 | 288 | 0.60 |
| 5020-064 | 85-115 | 370 | 1.30 |
| 5020-065 | 115-170 | 330 | 1.65 |
5020A Stainless Steel Universal Wrench
Universal Wrench
• Application: Used for removing and installing screws, bolts, nuts, etc.
• Material: 304 Stainless steel
| Model | D (mm) | L (mm) | Weight (kg) |
|---|---|---|---|
| 5020A-01 | 9-14 | 210 | 0.45 |
| 5020A-02 | 12-22 | 290 | 0.80 |
5021 Stainless Steel Hook Wrench
Hook Wrench
• Application: Used for fastening or disassembling round nuts on machine tools or mechanical equipment.
• Material: 304 Stainless steel
| Model | D (mm) | L (mm) | Weight (kg) |
|---|---|---|---|
| 5021-001 | 22-35 | 135 | 0.11 |
| 5021-002 | 32-52 | 155 | 0.18 |
| 5021-003 | 50-65 | 185 | 0.25 |
| 5021-004 | 65-90 | 190 | 0.40 |
| 5021-005 | 80-110 | 220 | 0.55 |
| 5021-006 | 100-130 | 245 | 0.70 |
| 5021-007 | 115-145 | 270 | 0.95 |
| 5021-008 | 135-170 | 300 | 1.20 |
| 5021-009 | 170-200 | 350 | 1.60 |
| 5021-010 | 200-230 | 400 | 1.90 |
| 5021-011 | 230-260 | 450 | 2.20 |
| 5021-012 | 260-290 | 500 | 2.50 |
| 5021-013 | 290-320 | 550 | 2.80 |
5021A Stainless Steel Belt Wrench
Belt Pipe Wrench
• Application: Wrench for general purpose, especially for dismantling glass pipes and smooth round objects, not easy to damage the surface.
• Material: 304 Stainless steel
| Model | Length L (mm) | Belt Length L (mm) | Belt Width B (mm) |
|---|---|---|---|
| 5021A-01 | 300 | 1300 | 12 |
| 5021A-02 | 450 | 1800 | 12 |
5022 Stainless Steel Valve Wrench (Jack Type)
Valve Handle (Jack Type)
• Application: Used for opening and closing valves, suitable for various valves.
• Material: 304 Stainless steel
| Model | Size (mm) | Weight (kg) |
|---|---|---|
| 5022-01 | 30*120 | 0.31 |
| 5022-02 | 40*220 | 0.31 |
5023 Stainless Steel F-type Valve Wrench
Valve Handle
• Application: Used for opening and closing various valves.
• Material: 304 Stainless steel
| Model | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|
| 5023-001 | 300 | 15 | 80 | 0.22 |
| 5023-002 | 300 | 15 | 100 | 0.28 |
| 5023-003 | 300 | 15 | 120 | 0.34 |
| 5023-004 | 300 | 15 | 140 | 0.40 |
| 5023-005 | 300 | 15 | 160 | 0.47 |
| 5023-006 | 300 | 15 | 180 | 0.53 |
| 5023-007 | 300 | 15 | 200 | 0.60 |
| 5023-008 | 300 | 15 | 220 | 0.66 |
| 5023-009 | 300 | 15 | 240 | 0.72 |
| 5023-010 | 350 | 15 | 280 | 0.88 |
| 5023-011 | 350 | 15 | 320 | 0.99 |
| 5023-012 | 400 | 15 | 360 | 1.14 |
| 5023-013 | 400 | 15 | 400 | 1.26 |
| 5023-014 | 500 | 15 | 450 | 1.59 |
| 5023-015 | 500 | 15 | 500 | 1.76 |
| 5023-016 | 600 | 15 | 550 | 2.27 |
| 5023-017 | 600 | 15 | 600 | 2.48 |
5024 Stainless Steel F-type Valve Wrench
Valve Handle
• Application: Used for opening and closing various valves.
• Material: 304 Stainless steel
| Model | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|
| 5024-001 | 150 | 6 | 15 | 0.07 |
| 5024-002 | 200 | 8 | 20 | 0.12 |
| 5024-003 | 250 | 8 | 22 | 0.15 |
| 5024-004 | 300 | 8 | 25 | 0.19 |
| 5024-005 | 350 | 8 | 25 | 0.22 |
| 5024-006 | 400 | 10 | 30 | 0.32 |
| 5024-007 | 450 | 12 | 35 | 0.47 |
| 5024-008 | 500 | 12 | 40 | 0.59 |
| 5024-009 | 550 | 12 | 45 | 0.72 |
| 5024-010 | 600 | 14 | 50 | 1.02 |
| 5024-011 | 650 | 14 | 55 | 1.17 |
| 5024-012 | 700 | 14 | 60 | 1.31 |
| 5024-013 | 750 | 16 | 65 | 1.62 |
| 5024-014 | 800 | 16 | 75 | 1.84 |
| 5024-015 | 850 | 18 | 80 | 2.20 |
| 5024-016 | 900 | 18 | 85 | 2.46 |
| 5024-017 | 950 | 18 | 90 | 2.65 |
| 5024-018 | 1000 | 20 | 95 | 3.10 |
Note: The description may be different with the product, please contact us for quotation.
