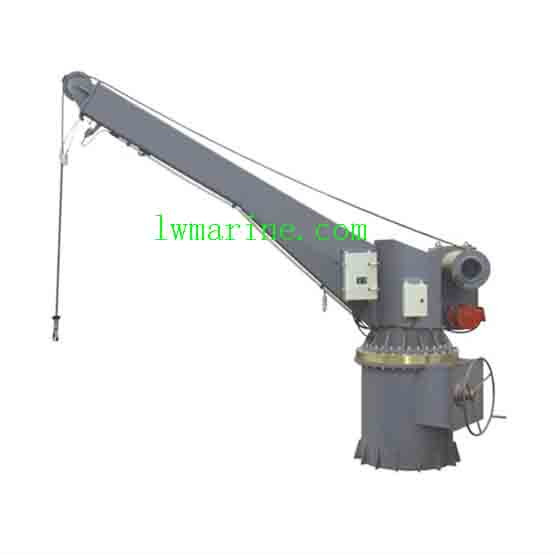

Hydraulic Slewing Rescue Boat Davit | CCS-Certified Marine Launching System
Product Overview:
Our Hydraulic Slewing Rescue Boat Davit is a premium marine safety system designed for efficient and reliable deployment and recovery of rescue boats and life rafts. Featuring advanced hydraulic slewing technology and gravity-assisted lowering, this davit ensures optimal performance even during power failures. Certified by CCS and compliant with international maritime safety standards, it provides robust emergency response capabilities for various vessel types and offshore installations.
Key Features & Benefits:
-
Hydraulic Slewing System: Enables smooth and precise rotation for optimal positioning during rescue operations
-
Gravity-Assisted Landing: Ensures reliable descent to water surface without external power requirements
-
Dual Control Operation: Can be operated either remotely via wire control from the lifeboat or manually on the platform
-
Power Failure Operation: Maintains full functionality during electrical outages with manual override capabilities
-
Advanced Winch System: Features motor-driven gearbox reduction with centrifugal speed limiting and manual brake function
-
High-Capacity Performance: Designed to handle significant working loads with multiple configuration options
Technical Specifications:
| Model Type | Max Safety Working Load | Hoisting Load | Hoisting Speed | Landing Speed | Rope Capacity | Max Rotation Radius |
|---|---|---|---|---|---|---|
| Standard | 21 KN | 14 KN | ≥18 m/min | 40-60 m/min | 30 m | 4500 mm |
| Heavy-Duty | 30 KN | 27 KN | ≥18 m/min | 40-60 m/min | 30 m | 4500 mm |
| Extended | 23 KN | 14 KN | ≥18 m/min | 40-60 m/min | 30 m | 7000 mm |
| Extended+ | 23 KN | 18 KN | ≥18 m/min | 40-60 m/min | 30 m | 7000 mm |
Crane Technical Data:
-
Maximum Hoisting Load: 2T-3T capacity options
-
Rope Capacity: 30 meters standard
-
Maximum Rotation Angle: ≤330°
-
Landing Speed: ≥15 m/min
-
Maximum Rotation Radius: Up to 10000 mm
Applications:
Ideal for commercial vessels, passenger ships, offshore platforms, and naval applications where reliable rescue boat deployment is critical for maritime safety operations.
The description/sizes may be different with goods, please check with us when order.
