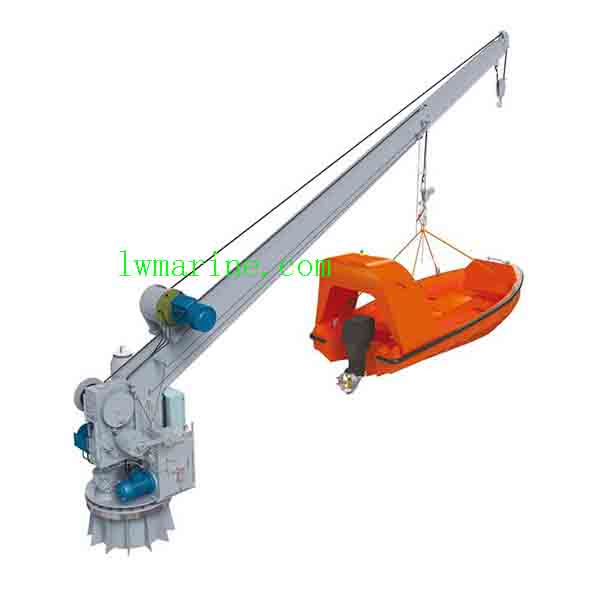

Single Arm Life Raft Davit
The Single Arm Life Raft Davit is a robust and reliable marine launching system designed for safe and efficient deployment and recovery of lifeboats and rescue rafts. Engineered to meet stringent international safety standards, this davit system features dual control options for operational flexibility and ensures dependable performance during maritime emergencies. Its gravity-assisted lowering mechanism and versatile slewing capabilities make it an essential safety component for various vessel types.
Key Features & Benefits:
-
Remote & Manual Control Options: Operators can control the winch brake remotely from inside the lifeboat via cable connection or manually on the deck for enhanced operational flexibility
-
Gravity-Assisted Lowering System: Ensures smooth and reliable descent of life rafts and boats using self-weight mechanisms
-
High-Capacity Performance: Designed to handle working loads up to 25 KN with optimized hoisting and lowering speeds
-
Extended Slewing Capability: Features a 330-degree rotation range with variable slewing speeds for precise positioning
-
Emergency Backup Operation: Includes stored power capability for slewing operations during power failures
-
Durable Construction: Built with heavy-duty components and 16mm wire rope for long-term reliability in harsh marine environments
Technical Specifications:
| Parameter | Unit | Model 1 | Model 2 | Model 3 | Model 4 |
|---|---|---|---|---|---|
| Maximum Working Load | KN | 14 | 21 | 23 | 25 |
| Slewing Radius | mm | R≤5400 | R≤4800 | R≤5400 | R≤5500 |
| Hoisting Speed | m/min | ≥18 (all models) | |||
| Lowering Speed | m/min | 40-60 (all models) | |||
| Maximum Slewing Angle | degree | ≤330 (all models) | |||
| Stored Power Slewing Angle | degree | ≤110 (all models) | |||
| Electric Slewing Speed | r/min | ≥0.25 (all models) | |||
| Stored Power Slewing Speed | r/min | 0.6-0.8 (all models) | |||
| Wire Rope Diameter | mm | 16 (all models) | |||
| Drum Capacity | m | 30 (all models) |
Applications:
Ideal for commercial shipping vessels, passenger cruise ships, offshore platforms, and workboats where reliable life raft and rescue boat deployment is critical for maritime safety operations.
