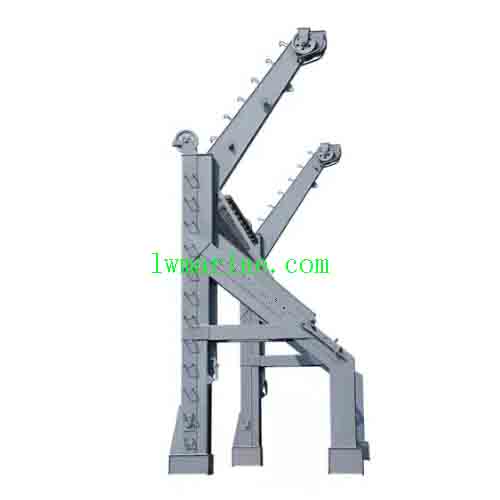

Gravity Luffing Arm Davit Technical Specifications
Load Capacity
-
Working Load (S.W.L): 25 kN to 170 kN
-
Hoisting Load: 14.5 kN to 70 kN
-
Slewing Load: 14.5 kN to 70 kN
Dimensions
-
Width: 2590 mm to 4430 mm
-
Height: 5100 mm to 9090 mm
Weight
-
Unit Weight: 2820 kg to 9438 kg
Gravity Luffing Arm Davit Main Specification
| Type | Dimension(mm) | Winch Load | Max. Davit Load | |||
| A | B | C | D | KN | KN | |
| LE65-1 | 1250 | 2000 | 2650 | 5480 | 48 | 55 |
| LE65-1 | 1300 | 2200 | 3100 | 6000 | 48 | 65 |
| LE85-1 | 1600 | 2680 | 3500 | 6600 | 63 | 85 |
| LE100-1 | 1700 | 2800 | 3600 | 6700 | 100 | 105 |
| LE138-1 | 1900 | 3250 | 4500 | 8000 | 100 | 138 |
| LE170-1 | 2300 | 3600 | 5200 | 10000 | 125 | 170 |
Note: The description might be incorrect, please contact us for confirmation.
