SINGLE LEAF FIREPROOF DOOR
Diagrams

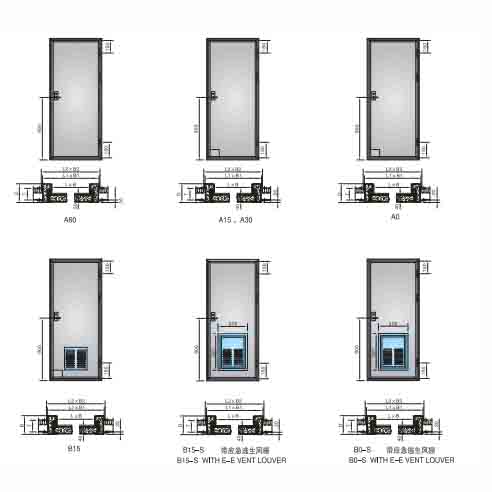

The image contains multiple technical diagrams of single-leaf fireproof doors in different views (front view, side view, etc.) for various models including A60, A15, A30, A0, B15, B15 – S (with e – event louver), B0 – S (with e – event louver). Each diagram is labeled with detailed dimensions such as L1×B1, L×B, T, etc.
Table 1: Door Specifications by Class and Sub – division
| Class | Sub – division | Opening Direction | Suitable Bulkhead |
|---|---|---|---|
| A (CLASS A) | A60, A30, A15, A0 | Left – opening LI(ZN), Left – opening LO(ZW) | A: One – layer steel bulkhead; B: One – layer decorative bulkhead |
| B (CLASS B) | B15, B15 – S, B0 – S | Right – opening RI(YN), Right – opening RO(YW) | A: One – layer steel bulkhead; C: Two – layer decorative bulkhead |
Table 2: Detailed Dimensions and Weights
| Class | Size of Doorway L×B | Frame Size L1×B1 | Size of B.H. Opening L2×B2 | T (mm) | Weight (KG) – A15 / A30 / A60 / B0 / B15 (as applicable) |
|---|---|---|---|---|---|
| A | 1850X650 | 1750X750 | 1755X755 | 45 | 61.75 / 88.49 / 106.53 / 112.26 (values vary by sub – type) |
| 1850X750 | 1750X850 | 1755X855 | 64.52 / 92.87 / 117.17 / 117.84 | ||
| 1850X800 | 1750X900 | 1755X905 | 66.92 / 95.21 / 114.73 / 121.01 | ||
| 1850X850 | 1750X950 | 1755X955 | 68.77 / 97.06 / 120.26 / 126.74 | ||
| 1900X700 | 1800X800 | 1805X805 | 71.4 / 104.32 / 132.44 / 134.64 | ||
| 1900X800 | 1800X900 | 1805X905 | 73.25 / 107.54 / 124.35 / 139.31 | ||
| B | 1850X650 | 1750X750 | 1755X755 | 45 | 55.86 / 95.01 (values for B0 – S etc. as per table) |
| 1850X750 | 1750X850 | 1755X855 | 58.64 / 100.03 | ||
| 1850X800 | 1750X900 | 1755X905 | 60.42 / 102.51 | ||
| 1850X850 | 1750X950 | 1755X955 | 62.11 / 104.93 | ||
| 1900X700 | 1800X800 | 1805X805 | 64.37 / 108.95 | ||
| 1900X800 | 1800X900 | 1805X905 | 66.11 / 111.49 |
Notes
- Door closers can be equipped according to customer requirements.
- Marking examples:
- For a 1850X650 A15 left – outer opening single – layer steel bulkhead single – leaf fireproof door: Single – leaf Fireproof Door A1(LO) – B1850X650 CB*3234 – 84.
- For a 1850X750 B15 – S right – outer opening single – layer decorative bulkhead single – leaf fireproof door with emergency air vent louver: Single – leaf Fireproof Door B15 – S(RI) – C 1850X750 50MM CB*3234 – 84.
Attention please: The description might be incorrect, please contact us for confirmation.
