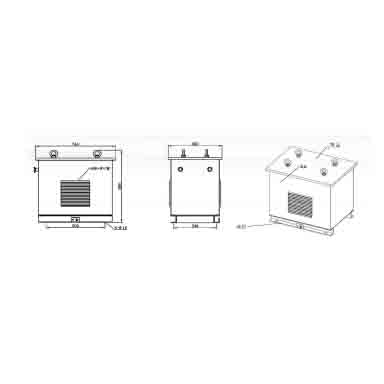

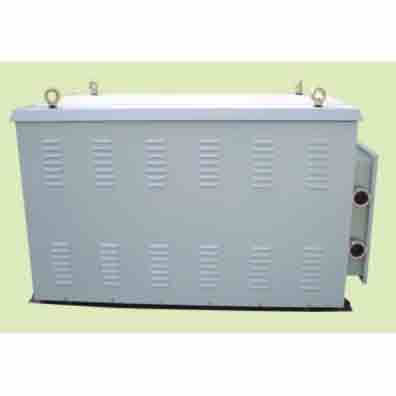

Ship Transformer
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | CDGS, CDGD, CDGSD, CDGSD, CSD, CSDGI, CSDGI, CSDGI, CSD, CSCD, CXB |
| Standard | CB/T1001-92, GB6450, GB/T10228, CB/T1167-92, IEC92, China Classification Society “Rules and Regulations for the Construction and Classification of Sea-going Steel Ships” (Fourth Volume) |
| Capacity Range | 0.5~2000KVA |
| Primary Voltage | 380V, 400V, or 440V, 480V, 690V |
| Secondary Voltage | 440V, 400V, or 230V, 115V |
| Frequency | 50Hz or 60Hz |
| Phase Number | 3-phase or single-phase |
| Vector Group | (1) Single phase: I0; (2) 3-phase: Yy0, Dd0, Yd11, Dy11, or (3) in accordance with customer’s requirement |
| Insulation Level | B or F or H or in accordance with customer’s requirement |
| Cooling Way | Natural air cooling or Force air cooling or Water cooling |
| Protection Class | IP22, IP23, or IP44, IP55 |
| Service Condition | The transformers can be used for lighting, power communication or insulation of power lines in ships, offshore platforms and other places under the following conditions: Altitude: ≤1000m; Ambient Temperature: ≤45℃; Relative Humidity: ≤95%; Be influenced by dew, oil & salt vapor, molds. There is vibrating, and swinging with angle up to 22.5°; stopping with 15° or below during ships transporting. For other service conditions, contact and negotiate with us. |
Product Overview
All marine transformers are built in accordance with the technical requirements of the IEC Publication 92, which is approved by ZC.
Structural Features
| Type | Description |
|---|---|
| Water-proof type (CDGS) | The cores of each transformer are rolled of the highest quality high-permeability silicon steel. The insulation windings are Class B or F or H. Suffaces of core and winding are coated with epoxy, so transformer has obtained well water-proof and moisture-proof quality. External cables are easily connected through the cable gland of the terminal box on the transformer. |
| Drop-proof type (CDGD, CDGSD, CDGSD, CSD, CSDGI, CSDGI, CSDGI, CSD, CSCD, CXB) | The cores are constructed of the highest quality high-permeability silicon steel, and are carefully assembled so as to firmly support the windings thus reduce vibration to minimum under operation condition. The windings are coiled by enamel-insulated wire, glass-silk-insulated wire or compound insulated wire are Class B, F, or H. The transformer tanks are made of the best quality steel plate and designed for air circulation and drop-proof, rat-proof. The terminal board and tap changing board are provided in the land. External cables are safely connected to the terminal board through the cable gland mounted on the tank side, their lengths are custom fabricated by the user. All ship transformers are lacquered by vacuum, it makes high insulation level and good moisture-proof for all products. |
Note: The description may be different with the product, please contact us for quotation.
