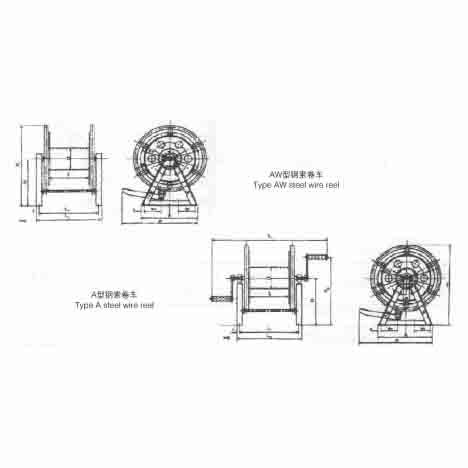

Ship Steel Wire Reel
Ship Steel Wire Reel
CB/T 3468-92
Used for store of steel wires in all kinds of ships.
| Name | Type | Model No. | Max dia. of steel rope (mm) | Max length of steel rope (mm) |
|---|---|---|---|---|
| Type A steel wire reel (W-no handle) | AW, A | AW13, A13 | 13.0 | 120 |
| AW17, A17 | 17 | 190 | ||
| AW21, A21 | 20.5 | 180 | ||
| AW26, A26 | 26.0 | 190 | ||
| AW32, A32 | 32 | 190 | ||
| Type B steel wire reel | B | B39 | 39.0 | 210 |
| B48 | 47.5 | 230 | ||
| Type C steel wire reel | C | C56 | 56 | 300 |
| Type | Max dia (mm) | D | D1 | D2 | L | L1 | L2 | L3 | B | B1 | H | H1 | H2 | Anchor bolt | Weight kg | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dia. | Qty. | B2 | L | |||||||||||||||
| AW13 | 13.0 | 170 | 330 | 530 | 350 | 528 | 584 | 1164 | 560 | – | 420 | 685 | – | M16 | 6 | 240 | 40 | 58 |
| A13 | 69 | |||||||||||||||||
| AW17 | 17 | 230 | 470 | 670 | 450 | 628 | 684 | 1284 | 620 | 925 | 495 | 830 | 670 | M16 | 8 | 180 | 40 | 76 |
| A17 | 86 | |||||||||||||||||
| AW21 | 20.5 | 280 | 560 | 760 | 500 | 700 | 770 | 1340 | 650 | 945 | 535 | 915 | 875 | M16 | 8 | 190 | 40 | 113 |
| A21 | 123 | |||||||||||||||||
| AW26 | 26.0 | 340 | 660 | 860 | 550 | 750 | 820 | 1425 | 695 | 972 | 610 | 1040 | 950 | M16 | 8 | 205 | 40 | 122 |
| A26 | 134 | |||||||||||||||||
| AW32 | 32 | 426 | 800 | 1000 | 850 | 850 | 920 | 1510 | 740 | 1024 | 665 | 1065 | 1510 | M16 | 8 | 220 | 40 | 162 |
| A32 | 172 |
Identification example
Max steel wire diameter 26mm AW type steel wire reel.
