MOORING FIBRE WIRE REEL

CB/T498—95 265.YHS—011

REEL SPECIFICATIONS AND MAIN PARAMETERS

表格

SPECIFICATION	FIBRE ROPE DIAMETER (mm)	STORAGE LENGTH RANGE L (m)
30	28	140~220
	30
34	32	160~220
	34
38	36	170~220
	38
42	40	170~220
	42
46	44	180~220
	46
50	48	180~220
	52
54	54	190~220
	56
60	60	190~220
	64
72	70	200~220
	72

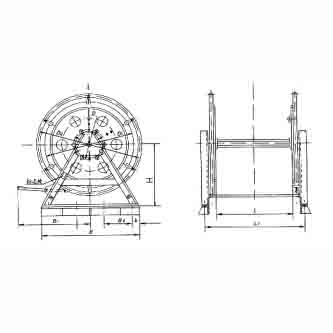

DIMENSION AND WEIGHT SPECIFICATION TABLE

表格

SPECIFICATION	D	D1	D2	L	L1	B	B1	H	FOUNDATION BOLT		b	WEIGHT kg
									THREAD DIAMETER	QUANTITY (pcs)
30	190	650	820	750	900	650	630	520	M16	8	40	85.1
34	190	650	820	800	1046	650	630	520				89.1
38	190	650	820	880	1066	650	630	520				93.1
42	255	810	980	850	1046	820	650	575		10		118.5
46	255	810	980	930	1126	820	650	575				122.5
50	325	970	1140	910	1108	980	800	655				140.3
54	325	970	1140	930	1128	980	800	655				145.3
60	405	1150	1320	1100	1108	1140	880	745		12		182.6
72	490	1330	1500	920	1132	1310	1030	830				216.1

NOTE: The calculation method of fibre rope length and the requirements for reel capacity increase shall be in accordance with Appendix A (reference) of this standard.

MARKING EXAMPLE

Mooring fibre wire reel with applicable fibre rope diameter 40~42mm: MOORING FIBRE WIRE REEL 42 CB/T498-95

AS INDICATION: FIBRE DIA 40-42mm FOR FIBRE WIRE REEL MOORING FIBRE WIRE REEL 42 CB/T498-95
