MARINE STEEL WIRE REEL
CB/T3468—92 265.YHS—010
APPLICATION
USED FOR THE STORE OF STEEL WIRES IN ALL KINDS OF SHIPS.
GENERAL SPECIFICATION TABLE
| NAME | TYPE | MODEL NO | MAXIMUM STEEL WIRE DIAMETER (mm) | MAXIMUM STEEL WIRE LENGTH (mm) |
|---|---|---|---|---|
| TYPE A STEEL WIRE REEL (W-WITH HANDLE) | AW, A | AW13, A13 | 13.0 | 120 |
| AW17, A17 | 17 | 180 | ||
| AW21, A21 | 20.5 | 180 | ||
| AW26, A26 | 26.0 | 180 | ||
| AW32, A32 | 32 | 180 | ||
| TYPE B STEEL WIRE REEL | B | B39 | 39.0 | 210 |
| B48 | 47.5 | 230 | ||
| TYPE C STEEL WIRE REEL | C | C56 | 56 | 300 |

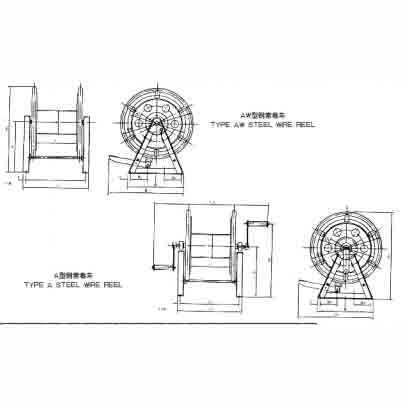

TYPE A STEEL WIRE REEL DIMENSION TABLE
| MODEL NO | MAXIMUM STEEL WIRE DIAMETER | D | D1 | D2 | L | L1 | L2 | L3 | B | B1 | H | H1 | H2 | FOUNDATION BOLT | WEIGHT kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| THREAD DIAMETER | QUANTITY (pcs) | |||||||||||||||
| AW13, A13 | 13 | 170 | 330 | 350 | 520 | 584 | 114 | 560 | 420 | 80 | 400 | 640 | M16 | 8 | 60 | |
| AW17, A17 | 17 | 200 | 400 | 470 | 600 | 684 | 128 | 680 | 490 | 85 | 475 | 785 | M16 | 8 | 78 | |
| AW21, A21 | 20.5 | 250 | 480 | 580 | 700 | 780 | 140 | 800 | 580 | 95 | 570 | 915 | M16 | 8 | 113 | |
| AW26, A26 | 26.0 | 300 | 580 | 680 | 800 | 880 | 150 | 900 | 680 | 105 | 670 | 1050 | M16 | 8 | 164 | |
| AW32, A32 | 32 | 350 | 680 | 800 | 900 | 980 | 160 | 1000 | 780 | 115 | 770 | 1150 | M16 | 8 | 172 |
NOTE: ①AW13, A13 type are not equipped with steel wires; ②L3 is the theoretical value
TYPE B STEEL WIRE REEL DIMENSION TABLE
| MODEL NO | MAXIMUM STEEL WIRE DIAMETER | D | D1 | D2 | L | L1 | L2 | L3 | B | B1 | H | H1 | H2 | GEAR | FOUNDATION BOLT | WEIGHT kg | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LARGE GEAR TEETH | SMALL GEAR TEETH | THREAD DIAMETER | QUANTITY (pcs) | |||||||||||||||
| B39 | 39.0 | 510 | 680 | 1000 | 750 | 1032 | 1656 | 910 | 1080 | 564 | 1148 | 1300 | 166 | 22 | M16 | 10 | 337 | |
| B48 | 47.5 | 620 | 1030 | 1320 | 1100 | 1386 | 2000 | 1200 | 1350 | 584 | 1100 | 1300 | 180 | 17 | M16 | 12 | 384 |
NOTE: L3 is the theoretical value
TYPE C STEEL WIRE REEL DIMENSION TABLE
| MODEL NO | MAXIMUM STEEL WIRE DIAMETER (mm) | GEAR TEETH | FOUNDATION BOLT | WEIGHT kg | |||
|---|---|---|---|---|---|---|---|
| LARGE GEAR TEETH | SMALL GEAR TEETH | THREAD DIAMETER | QUANTITY (pcs) | ||||
| C56 | 56 | 10 | 134 | 18 | M24 | 14 | 643.75 |
MARKING EXAMPLE
- Steel wire reel for AW type with maximum steel wire diameter 26mm: WIRE REEL AW26 CB/T3468-92
- Steel wire reel for B48 type with maximum steel wire diameter 47.5mm: WIRE REEL B48 CB/T3468-92
AS INDICATION:
- STEEL WIRE MAXIMUM DIA 26mm FOR AW TYPE STEEL WIRE REEL WIRE REEL AW26 CB/T3468-92
- STEEL WIRE MAXIMUM DIA 47.5mm FOR B48 TYPE STEEL WIRE REEL WIRE REEL B48 CB/T3468-92
Note: The description may be different with the product, please contact us for quotation.
