Close – up Cable Reel Type C

Close – up Cable Reel Type C (CB * 576 – 76)

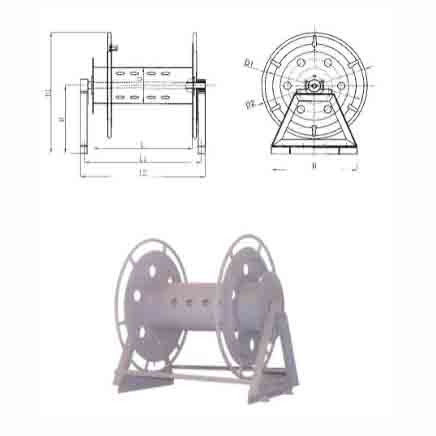

Top – section: Technical Drawings

• The top – left drawing is a front – view technical schematic of the close – up cable reel Type C. It includes multiple linear dimensions such as L1, L2, and overall length L, which define the length and width – related measurements of the reel.
• The top – right drawing is a top – view technical schematic, showing circular dimensions like D1 and D2, which represent different diameters of the reel structure, and other details about the internal and external circular features.

Middle – section: Product Photo

It is a photo of the actual close – up cable reel Type C. The reel consists of two large circular flanges connected by a central cylindrical part, mounted on a metal frame with a support structure at the bottom. The frame allows the reel to be placed stably on a surface.

Bottom – section: Specification Table

The table provides specifications for two types (C38 and C44) of the close – up cable reel Type C, including parameters such as cable diameter range, multiple linear dimensions, and weight.

Note:

• Type: Different types of cable reels with distinct specifications.
• Cable Diameter: The range of cable diameters that the reel can accommodate.
• Linear Dimensions (D, D1, D2, L, L1, etc.): These define the physical size and shape of the reel, including diameters of different parts and lengths of various components. For example, D may represent an outer diameter, and L may represent the overall length.
• Weight: The self – weight of the cable reel for each type.

Attention please: The description may be different with the product, please contact us for quotation.
