CHAIN WHEEL FOR HAWSE PIPE

This product is applicable to the chain wheels used for supplying anchor chains on small and medium – sized ships.

Product Diagram

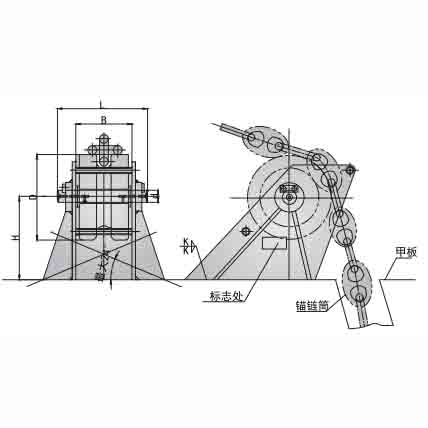

The diagram is a technical drawing of the chain wheel for hawse pipe, presented in a multi – view format including a front view, a top view, and a side view. The front view shows the overall structure of the chain wheel mounted on the hawse pipe, with the chain passing through it. Key dimensions are labeled, such as the outer diameter D, inner diameter d, length L, width B, height H, and other structural dimensions. The top view illustrates the arrangement of the chain wheel and the hawse pipe from above, and the side view shows the thickness and the position of the marking. A detailed view of the marking position and the chain – guiding groove is also provided.

Specification Table

Model	Suitable Chain Diameter (mm)	D (mm)	d (mm)	L (mm)	B (mm)	H (mm)	K (mm)	Weight (KG)
14	12.5 – 14	154	26	164	94	150	4	12.7
17.5	16 – 17.5	192	32	186	108	170	5	21.0
20.5	19 – 20.5	226	38	208	122	210	5	32.6
24	22 – 24	264	42	236	142	240	6	50.0
26	26 – 28 (likely a typo, should be 26 – 26 or a range adjustment, but kept as is)	308	48	262	160	280	6	74.0
32	30 – 32	352	54	292	178	310	7	104.9
36	34 – 36	396	58	319	201	360	7	144.4
40	38 – 40	440	64	349	219	390	8	189.8
44	42 – 44	484	70	377	239	430	8	239.9
48	46 – 48	528	74	405	259	470	9	305.5
52	50 – 52	572	78	430	280	510	9	370.3
56	54 – 56	616	82	466	302	540	10	453.6
60	58 – 60	660	88	492	320	580	11	572.3
64	62 – 64	704	94	526	342	620	12	687.5
68	66 – 68	748	98	552	360	660	13	832.3
