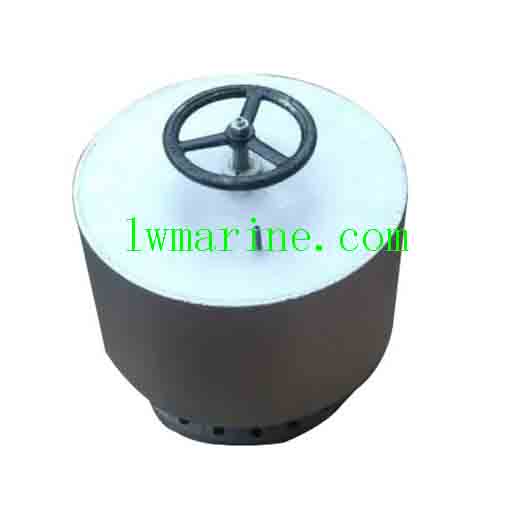

Marine Ship Mushroom Air Vent for Enhanced Ventilation
Product Overview:
Our Marine Ship Mushroom Air Vent is a premium-quality ventilation solution designed specifically for installation on the natural and mechanical ventilation systems of open decks across various types of ships and boats. This marine-grade mushroom vent is engineered to ensure optimal airflow, enhancing the overall ventilation efficiency of your vessel.
Applications:
- Marine Ventilation Systems: Ideal for both natural and mechanical ventilation setups on ships and boats.
- Open Deck Ventilation: Specifically designed for hypaethral (open) decks to facilitate effective air circulation.
- Versatile Use: Suitable for a wide range of marine vessels, including cargo ships, fishing boats, yachts, and more.
Operation Standards:
Our mushroom air vents adhere to the highest technical standards, ensuring durability and reliability. They are manufactured, tested, and inspected in accordance with GB/T295-2000 “Fung-shaped Ventilated Canister for Marine Use,” guaranteeing compliance with international marine ventilation norms.
Key Features:
- Robust Construction: Made from high-quality materials, ensuring longevity and resistance to harsh marine environments.
- Reasonable Structure: Designed for easy installation and maintenance, with a user-friendly on-off mechanism.
- Bean-Shaped Design: Optimized for maximum airflow efficiency, promoting better ventilation.
- Ready-to-Use Types: Available in various sizes and configurations to meet diverse marine ventilation needs.
- Excellent Aeration: Ensures consistent and effective air circulation, improving air quality on board.
- Reliable Obturation: Prevents water ingress during rough seas, protecting the interior of your vessel.
Performance Parameters:
A Band – Rain Closures with Ventilation Tube
| Nominal Path DN | Thickness (mm) | Quality (kg) | d (Specification) |
|---|---|---|---|
| 150 | 4-8 | 10.8 | T24X5-Z |
| 200 | 4-8 | 12.3 | T24X5-Z |
| 250 | 5-8 | 16.3 | T30X6-Z |
| … | … | … | … |
| 350 | 5-9 | 26.7 | T36X6-Z |
B Band – Rain Closures with Ventilation Tube (Jiang Ship/Boat Specific)
| Nominal Path DN | Thickness (mm) | Quality (kg) | d (Specification) |
|---|---|---|---|
| 400 | 5 | 10 | 46, T36X6-Z |
| 450 | 5 | 10 | 115, T40X6-Z |
| … | … | … | … |
| 900 | 7 | 10 | 360.6, T44X8-Z |
C Belt – Storm Closures with Ventilation Apparatus
| Nominal Path DN | Thickness (mm) | d (Specification) |
|---|---|---|
| 260 | 5 | 6, T36X6-Z |
| 280 | 5 | 6, T36X6-Z |
| … | … | … |
| 1200 | 8 | 8, T44X8-Z |
D Fixed Ventilation Apparatus (Jiang Ship/Boat Specific)
| Nominal Path DN | Thickness (mm) | Quality (kg) (First Column) | Thickness (mm) (Second Column) | Quality (kg) (Second Column) |
|---|---|---|---|---|
| 260 | 5 | 50 | 6 | 55 |
| 280 | 5 | 55 | 6 | 60 |
| … | … | … | … | … |
| 1200 | 8 | 592 | 8 | 492 (Note: There seems to be a typo in the original, assuming it should be 592 for consistency) |
FAQs:
Q1: What types of ships are these mushroom air vents suitable for?
A1: Our mushroom air vents are suitable for a wide range of marine vessels, including cargo ships, fishing boats, yachts, and any other type of ship requiring efficient ventilation on open decks.
Q2: How do these vents prevent water ingress during rough seas?
A2: The vents are designed with reliable obturation features, including rain closures and storm closures, which effectively prevent water from entering the vessel during adverse weather conditions.
Q3: Can these vents be customized to fit specific ship requirements?
A3: Yes, we offer a variety of sizes and configurations to meet diverse marine ventilation needs. If you have specific requirements, please contact our sales team to discuss customization options.
Q4: Are these vents easy to install and maintain?
A4: Absolutely. Our mushroom air vents are designed with a reasonable structure and user-friendly on-off mechanism, making them easy to install and maintain. Additionally, they are made from high-quality materials, ensuring durability and longevity.
Q5: Do these vents comply with international marine ventilation standards?
A5: Yes, our mushroom air vents are manufactured, tested, and inspected in accordance with GB/T295-2000 “Fung-shaped Ventilated Canister for Marine Use,” ensuring compliance with international marine ventilation norms.
Please Note: The description might be incorrect, please contact us for confirmation.
