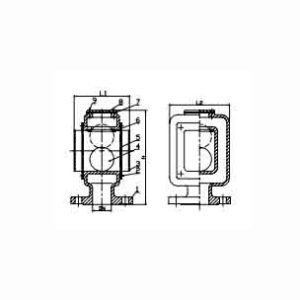

SERIES CB/T3594ES PN6 CB/T3594FS PN10 Air Vent Head
Manufactured in accordance to DIN
Flanges as per DIN

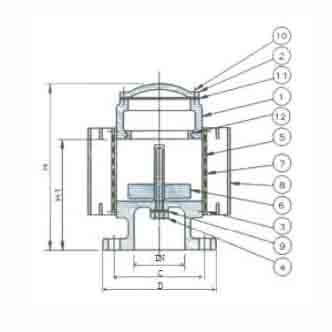

Parts List
| No. | Name | Materials |
|---|---|---|
| 1 | Body | FC/FCD |
| 2 | Top Cover | FC/FCD |
| 3 | Disc | SUS 304 |
| 4 | Guide Bar | SUS 304 |
| 5 | Seat Packing | NBR |
| 6 | Screen Cover | SUS 304 |
| 7 | Wire Net | SUS 304 |
| 8 | Net Frame | SUS 304 |
| 9 | Packing | NBR |
| 10 | Hex. Bolt | SUS 304 |
| 11 | Packing | NBR |
| 12 | Hex. Bolt | SUS 304 |
CB/T3594ES PN6 Dimensions
(Data extracted as provided; note that the original table appears to list PN6 and PN10 data in a combined format. Below is the separated presentation.)
| Size | D | C | N | KG |
|---|---|---|---|---|
| 50 | 140 | 110 | 4×Φ14 | 50 |
| 65 | 160 | 130 | 4×Φ14 | 65 |
| 80 | 190 | 150 | 4×Φ18 | 80 |
| 100 | 210 | 170 | 4×Φ18 | 100 |
| 125 | 240 | 200 | 8×Φ18 | 125 |
| 150 | 265 | 225 | 8×Φ18 | 150 |
| 200 | 320 | 280 | 8×Φ18 | 200 |
| 250 | 375 | 335 | 12×Φ18 | 250 |
| 300 | 440 | 395 | 12×Φ22 | 300 |
| 350 | 490 | 445 | 12×Φ22 | 350 |
| 400 | 540 | 495 | 16×Φ22 | 400 |
| 450 | 595 | 550 | 16×Φ22 | 450 |
CB/T3594FS PN10 Dimensions
(Note: KG values in the original appear to correspond to Size values; these are presented as given.)
| Size | D | C | N | KG |
|---|---|---|---|---|
| 50 | 165 | 125 | 4×Φ18 | 50 |
| 65 | 185 | 145 | 4×Φ18 | 65 |
| 80 | 200 | 160 | 4×Φ18 | 80 |
| 100 | 220 | 180 | 4×Φ18 | 100 |
| 125 | 250 | 210 | 8×Φ18 | 125 |
| 150 | 285 | 240 | 8×Φ22 | 150 |
| 200 | 340 | 295 | 8×Φ22 | 200 |
| 250 | 295 | 350 | 12×Φ22 | 250 |
| 300 | 445 | 400 | 12×Φ22 | 300 |
| 350 | 505 | 460 | 16×Φ22 | 350 |
| 400 | 565 | 515 | 16×Φ26 | 400 |
| 450 | 615 | 565 | 20×Φ28 | 450 |
