Fungus-shaped Ventilated Canister For Marine Use

Fungus-shaped Ventilated Canister For Marine Use

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Fungus-shaped Ventilated Canister For Marine Use

1. Using range & purpose
It can be fixed on the natural and mechanical ventilate devices on the hyperithral decks of all sorts of ships for ventilation.

2. Operation Standards
Technical conditions of ventilators’ manufacture, experiment and check – accept accord with CB/T295 – 200 (Fungus – shaped ventilated canister For Marine Use).

3. Sort
Ventilated canister’s types, names and sizes

Type Name Nominal dia DN(mm)
A Inside on – off Hood ventilator 150 – 350
B Outer on – off obturation ventilator 250 – 1200
C Outer on – off obturation axial flow ventilator 150 – 1600
D Fixed ventilated canister 200 – 1200
E Inside on – off obturation ventilator 150 – 350
F Outer side on – off obturation ventilator 150 – 900

4. Features
Au types of ventilated canisters above have the following features reasonable structure convenient on – off, beneful shapes, au ready types, good aeration, reliable obturation. They can satisfy the wide needs of the shipping industry.

5. Marks
The mark of the ventilated canister cohose DN = 500mm is: Ventilated canister CS00 CB/T295 – 2000.

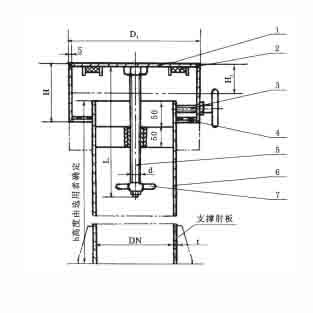

Type A Inside on-off Hood Ventilator

  1. Hood
  2. Airproof filling
  3. Trigging helix
  4. The net for miceproofing(wormproofing fireproofing)
  5. Screw
  6. Ventilator
  7. Handwheel
Nominal dia DN D₁ H H₁ d L t Weight kg
150 250 100 40 M24 250 8 11
200 320 110 50 M24 250 8 12
250 390 125 65 M28 300 9 16
300 470 135 75 M28 300 9 20
350 540 150 90 M28 350 9 27

Note: 1. The weight of ventilator doesn’t include the weight of type – 6. 2. Ventilator height h distance between ventilat or height(h) and the deck is more than 900mm, please fix supporting board.

Type B Outer on-off obturation Ventilator

  1. Ventilator
  2. Hood
  3. Screw
  4. Obturation
  5. Airproof filling
  6. Instruction stick
  7. Sleeve
  8. Handwheel
  9. Oiling glass
  10. The net for miceproofing, worm-proofing or fireproofing
Nominal dia DN D₁ D₂ H H₁ d t Weight kg
250 440 200 245 90 Tr24×5-4LH 9 52
300 530 265 310 105 Tr30×6-4LH 9 65
350 620 345 375 120 Tr40×7-4LH 10 81
400 710 380 405 120 Tr40×7-4LH 10 98
450 800 375 435 120 Tr40×7-4LH 10 124
500 890 405 470 120 Tr40×7-4LH 10 148
550 980 435 500 120 Tr40×7-4LH 10 167
600 1050 470 530 120 Tr40×7-4LH 10 171
650 1160 500 560 120 Tr40×7-4LH 10 210
700 1240 520 600 140 Tr46×9-4LH 10 225
750 1320 540 640 140 Tr46×9-4LH 10 259
800 1410 560 680 140 Tr46×9-4LH 10 291
850 1500 580 720 140 Tr46×9-4LH 10 322
900 1580 600 760 140 Tr46×9-4LH 10 357
950 1670 620 800 140 Tr46×9-4LH 10 387
1000 1760 640 840 140 Tr46×9-4LH 10 420
1100 1930 680 920 140 Tr46×9-4LH 10 515
1200 2100 720 1000 140 Tr46×9-4LH 10 585

Note: 1. The weight of ventilator doesn’t include the weight of type-1. 2. Ventilator height h distance between ventilat or height(h) and the deck is more than 900mm, please fix supporting board.

Type C Inside on-off obturation axial flow ventilator

  1. Ventilator
  2. Hood
  3. Screw
  4. Obturation
  5. Airproof filling
  6. Instruction stick
  7. Sleeve
  8. Handwheel
  9. Oiling glass
  10. The net for miceproofing, worm-proofing or fireproofing

Note: The sizes of flange and axial flange are equal.

Nominal dia DN D₁ D₂ H H₁ H₂ d t Flange Dimensions D₁ Flange Dimensions D₂ n-Φ Weight kg
150 260 150 190 315 395 Tr24×5-4LH 6 214 190 8-Φ10 45
200 370 200 210 335 415 Tr24×5-4LH 6 264 240 8-Φ10 50
250 440 250 245 365 447 Tr24×5-4LH 6 314 290 8-Φ10 62
280 480 280 250 370/475 452/552 Tr30×6-4LH 6 330 305 12-Φ12 72
300 530 300 265 385 465 Tr30×6-4LH 6 350 320 12-Φ12 77
320 570 320 290 410/520 490/600 Tr30×6-4LH 6 375 345 12-Φ12 89
350 620 320 310 430 512 Tr30×6-4LH 6 425 395 12-Φ12 96
400 710 380 345 470 566 Tr40×7-4LH 8 475 445 12-Φ12 118
450 800 380 375 500 596 Tr40×7-4LH 8 510 480 12-Φ12 147
500 890 380 405 530 639 Tr40×7-4LH 8 545 510 12-Φ15 179
550 980 380 435 560 669 Tr40×7-4LH 8 645 610 12-Φ15 207
600 1050 380 470 620 729 Tr40×7-4LH 8 695 660 16-Φ15 223
650 1160 380 500 650 759 Tr40×7-4LH 8 732 700 16-Φ15 280
700 1240 380 520 670 779 Tr40×7-4LH 8 745 710 16-Φ15 249
750 1320 380 540 690 799 Tr40×7-4LH 8 795 760 16-Φ19 274
800 1410 380 560 740 869 Tr46×9-4LH 8 860 820 16-Φ19 309
850 1500 380 580 760 889 Tr46×9-4LH 8 910 870 16-Φ19 359
900 1580 380 600 780 909 Tr46×9-4LH 8 960 920 16-Φ19 408
950 1670 380 620 800 929 Tr46×9-4LH 8 1010 970 20-Φ19 434
1000 1760 380 640 820 949 Tr46×9-4LH 8 1060 1020 20-Φ19 453
1100 1930 380 680 860 989 Tr46×9-4LH 8 1110 1070 20-Φ24 530
1200 2100 380 720 900 1029 Tr46×9-4LH 8 1210 1170 20-Φ24 689
1400 2350 380 760 940 1160 Tr46×9-4LH 8 1330 1280 20-Φ24 780
1600 2450 380 800 1100 1220 Tr46×9-4LH 8 1370 1680 24-Φ24 890

Type D ventilator canister

  1. Ventilator
  2. The net for miceproofing, worm-proofing or fireproofing
  3. Hood
Nominal dia DN D₁ H H₁ H₂ t Flange Dimensions D₁ Flange Dimensions D₂ n-Φ Weight kg
200 360 190 195 290 6 264 240 8-Φ10 38
250 440 220 195 320 6 314 290 8-Φ12 42
300 530 260 205 365 6 375 345 12-Φ12 52
350 620 310 205 410 6 425 395 12-Φ12 65
400 710 345 205 445 6 475 445 12-Φ15 81
450 800 375 205 475 6 545 510 12-Φ15 99
500 890 405 205 505 6 595 560 12-Φ15 122
550 980 435 205 535 6 645 610 16-Φ15 147
600 1050 470 220 570 6 695 660 16-Φ15 169
650 1160 500 220 600 6 745 710 16-Φ19 194
700 1240 520 220 620 6 795 760 16-Φ19 218
750 1320 540 220 640 6 860 820 16-Φ19 233
800 1410 560 240 680 6 910 870 20-Φ19 299
850 1500 580 240 700 6 960 920 20-Φ19 305
900 1580 600 240 720 6 1010 970 20-Φ19 334
950 1670 620 240 740 6 1060 1020 20-Φ19 358
1000 1760 640 240 760 6 1110 1070 20-Φ24 402
1100 1930 680 240 780 6 1210 1170 20-Φ24 496
1200 2100 720 240 820 6 1310 1280 20-Φ24 592

Type E Inside on-off obturation ventilator

  1. Hood
  2. Obturation
  3. Screw
  4. The net for miceproofing, worm-proofing or fireproofing
  5. Ventilator
  6. Handwheel
Nominal dia DN D₁ H H₁ H₂ d L t Flange Dimensions D₁ Flange Dimensions D₂ n-Φ Lift D₂ mm
150 270 155 195 275 Tr20×4 235 6 214 190 8-Φ10 100
200 360 175 195 295 Tr20×4 250 6 264 240 8-Φ10 140
250 440 205 215 325 Tr24×5 280 6 314 290 8-Φ12 160
300 530 225 210 345 Tr24×5 300 6 375 345 8-Φ12 200
350 620 250 210 370 Tr30×6 330 6 425 395 8-Φ12 200

Type F Outer on-off obturation ventilator

  1. Hood
  2. Obturation
  3. Oriented pole
  4. The net for miceproofing, worm-proofing or fireproofing
  5. Ventilator
  6. Pland
  7. Orientation handle
  8. Handle
  9. Handwheel
Nominal dia DN D₁ D₂ H H₁ H₂ F t Weight kg
150 360 214 200 600 700 170 6 40
200 460 264 210 600 710 170 6 45
250 530 314 240 600 740 170 6 50
300 640 375 270 600 770 170 6 60
350 760 425 305 700 905 220 8 70
400 850 475 360 700 960 220 8 80
500 980 595 420 1000 1120 220 8 180
600 1100 695 480 1000 1380 220 8 275
700 1280 795 640 1250 1790 220 8 350
750 1350 860 680 1250 1830 220 8 375
800 1450 910 710 1250 1860 220 8 400
900 1670 1010 830 1250 1980 220 8 465

Note: The description might be incorrect, please contact us for confirmation.
