SERIES JIS-F3012A-122 Air Vent Head
Manufactured in accordance to JIS F7400
Flanges as per JIS B2220-5K

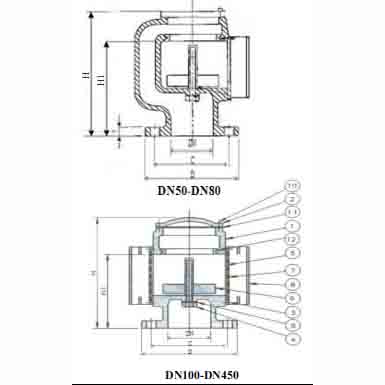

DN50-DN80
DN100-DN450
Series JIS-F3012A-122 Dimensions
| Size | D | C | H | H1 | N | KG |
|---|---|---|---|---|---|---|
| 50 | 130 | 105 | 182 | 127 | 4×Φ15 | 5.3 |
| 65 | 155 | 130 | 198 | 164 | 4×Φ15 | 6.7 |
| 80 | 180 | 145 | 223 | 176 | 4×Φ19 | 9.25 |
| 100 | 200 | 165 | 217 | 160 | 8×Φ19 | 13.8 |
| 125 | 235 | 200 | 240 | 180 | 8×Φ19 | 18.5 |
| 150 | 265 | 230 | 265 | 208 | 8×Φ19 | 25 |
| 200 | 320 | 280 | 316 | 269 | 8×Φ23 | 46 |
| 250 | 385 | 345 | 430 | 314 | 12×Φ23 | 70 |
| 300 | 430 | 390 | 530 | 367 | 12×Φ23 | 121 |
| 350 | 480 | 435 | 570 | 415 | 12×Φ23 | 177 |
| 400 | 540 | 495 | 640 | 475 | 16×Φ25 | 220 |
| 450 | 605 | 555 | 713 | 522 | 16×Φ25 | 298 |
Parts List
| No. | Name | Materials |
|---|---|---|
| 1 | Body | FC/FCD |
| 2 | Top Cover | FC/FCD |
| 3 | Disc | SUS 304 |
| 4 | Guide Bar | SUS 304 |
| 5 | Seat Packing | NBR |
| 6 | Screen Cover | SUS 304 |
| 7 | Wire Net | SUS 304 |
| 8 | Net Frame | SUS 304 |
| 9 | Packing | NBR |
| 10 | Hex. Bolt | SUS 304 |
| 11 | Packing | NBR |
| 12 | Hex. Bolt | SUS 304 |
Note: The description may be different with the product, please contact us for quotation.
