Ship Junction Box

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Ship Junction Box

Technical parameter

● Used to protect the circuit connection of AC&DC electrical circuit in ships and industry system;
● Conform to CB/T3091—1994 standard;
● Working voltage ≤600V, working current of junction box ≤16A, working current of junction with fuse ~20A;
● Protection class is IP55;
● Please remark gland size, quantity and arrangement if have special requirement while ordering.

Type specification

船用接线盒 Marine junction box

JXT □ □

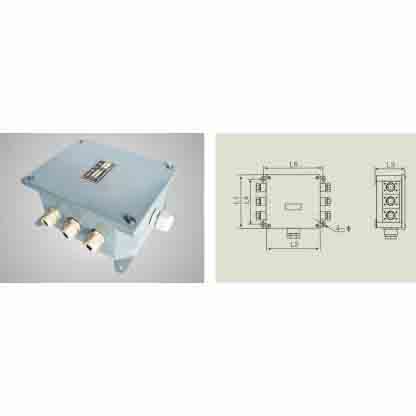

- 填料函品代号(见图) code of cable gland (see diagram)
- 接线柱个数 Number of connection pillar
- 接线盒名称 Name of junction box

熔断器接线盒 Junction box with fuse

JXTR □ □
- 填料函品代号(见图) code of cable gland (see diagram)
- 熔断器个数 Number of fuse
- 熔断器接线盒 Junction box with fuse

Specification Table Of Junction Box Type

序号 NO.	型号 Type	接线柱个数 Number of connection pillar			填料函个数 Num. of gland			外形尺寸 shell Dimensions	安装尺寸 setting Dimensions	防护等级 Protection class
		15A	25A	M36	PG21	PG16		L1×L2×L3	L4×L5
1	JXT4-1	4			3			130×130×80	100×140/Φ6.5	IP55
2	JXT4-2	4			4			130×130×80	100×140/Φ6.5	IP55
3	JXT4-3	4			4			130×130×80	100×140/Φ6.5	IP55
4	JXT6-1	6			3			130×130×80	100×140/Φ6.5	IP55
5	JXT6-2	6			4			130×130×80	100×140/Φ6.5	IP55
6	JXT6-3	6			4			130×130×80	100×140/Φ6.5	IP55
7	JXT6-4	6			5			130×130×80	100×140/Φ6.5	IP55
8	JXT6-5	6			6			130×130×80	100×140/Φ6.5	IP55
9	JXT6-6	6			7			130×130×80	100×140/Φ6.5	IP55
10	JXT8-4	8			6			130×130×80	100×140/Φ6.5	IP55
11	JXT8-5	8			6			130×130×80	100×140/Φ6.5	IP55
12	JXT8-6	8			7			130×130×80	100×140/Φ6.5	IP55
13	JXT12-2	12			3			230×180×105	200×190/Φ9	IP55
14	JXT12-4	12			6			230×180×105	200×190/Φ9	IP55
15	JXT12-5	12			7			230×180×105	200×190/Φ9	IP55
16	JXT12-6	12			8			230×180×105	200×190/Φ9	IP55
17	JXT12-10	12		1	2	10		330×180×105	300×190/Φ9	IP55
18	JXT12-12	12			8			230×180×105	200×190/Φ9	IP55
19	JXT12-13	12			1	8		250×180×105	220×190/Φ9	IP55
20	JXT12-14	18	1		2	8		230×180×105	200×190/Φ9	IP55
21	JXT18-2	18			8			230×180×105	200×190/Φ9	IP55
22	JXT18-8	18			2	10		330×180×105	300×190/Φ9	IP55
23	JXT18-9	18	6	1		12		330×180×105	300×190/Φ9	IP55
24	JXT18-10	18			8			250×180×105	220×190/Φ9	IP55
25	JXT18-13	18			2	8		250×180×105	220×190/Φ9	IP55
26	JXT18-14	18		1		10		230×180×105	200×190/Φ9	IP55
27	JXT24-7	24			12			330×180×105	300×190/Φ9	IP55
28	JXT24-8	24			2	10		330×180×105	300×190/Φ9	IP55
29	JXT24-9	24			1	12		330×180×105	300×190/Φ9	IP55
30	JXT24-10	18	18	1	2	10		330×180×105	300×190/Φ9	IP55
31	JXT30-9	30			1	12		330×180×105	300×190/Φ9	IP55
32	JXT30-8	30			1	12		330×180×105	300×190/Φ9	IP55
33	JXT30-10	30			1	2	10		330×180×105	300×190/Φ9	IP55
34	JXT30-11	30			1	14		350×180×105	320×190/Φ9	IP55
35	JXT36-8	36			2	10		330×180×105	300×190/Φ9	IP55
36	JXT36-9	36			12			330×180×105	300×190/Φ9	IP55
37	JXT36-9	36			12			330×180×105	300×190/Φ9	IP55
38	JXT36-8	36			2	10		330×180×105	300×190/Φ9	IP55
39	JXT36-9	36			12			330×180×105	300×190/Φ9	IP55
40	JXT36-10	36			1	2	10		330×180×105	300×190/Φ9	IP55
41	JXT36-11	36			1	14		350×180×105	320×190/Φ9	IP55
42	JXT36-15	36			6		12		330×180×105	300×190/Φ9	IP55
43	JXT48-16	48			1	18		370×280×105	340×290/Φ9	IP55
44	JXT48-17	48			1	8		370×280×105	340×290/Φ9	IP55
45	JXT48-18	48			1	22		370×280×105	340×290/Φ9	IP55

Note: The description may be different with the product, please contact us for quotation.
