Rotating Warning Light
ROTATING WARNING LIGHT

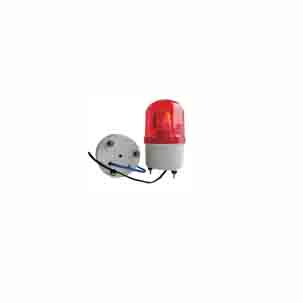

- Product Image and Diagram: The image shows a red – colored rotating warning light (model VGM – 100) along with a technical diagram indicating its dimensions (with diameter dimensions of 73/92/102 and height of 112, etc.).
Main Technical Parameters
| Parameter | Description |
|---|---|
| The scope of application | It is suitable for all kinds of ships with a length of 12 meters to 50 meters to communicate with each other in night navigation light signals. |
| Model | VGM – 100 (with part number 792150 – 792180 also mentioned) |
| Rated Voltage | DC12V, DC24V, AC110V, AC220V |
| Power | 10W/30W/40W (the original “10W30W40W” is interpreted as multiple power options) |
| Rotation Speed (Flash Frequency) | 50 – 70/min |
| Color | Red, Green, Yellow, Blue (original “红 Red、绿 Green、黄 Yellow、蓝 Blue”) |
| Vertical Arc | 360° (inferred from the nature of rotating light, though not explicitly stated as “vertical” in the usual sense, but it rotates in a horizontal – like full – circle; the original just has “Level Arc” concept not clearly separated, but for a rotating light, it covers 360° horizontally) |
| Visibility | 1n.m |
| Protection Class | IP56 |
| Cable Outside Diameter | Φ14 – Φ16 (for one part, and Φ11 for another connection – related part, but not very clear – cut in original; here we list the main cable diameter as Φ14 – Φ16) |
| Installation Method | Bolt – fixed base type |
| Ambient Temperature | -30℃～+50℃ |
| Lamp Body Material | The housing is made by plastic injection molding |
| Lampshade Material | Plastic |
| Weight | 0.35KG (for the main light part), 0.2KG (for another related part, but not clearly defined; here we mainly take 0.35KG as the light weight) |
Attention please: The description may be different with the product, please contact us for quotation.
