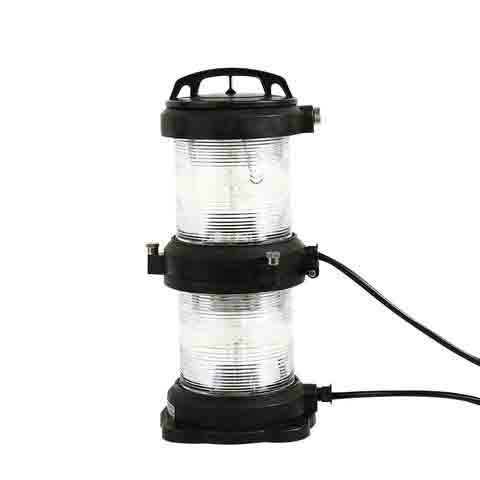

CXH1 – 101PN Marine Double
For ships with a length of 50 meters or more, our professional – grade CXH1 – 101PN Marine Double – Deck Navigation Signal Light is the ultimate choice for ensuring safe night navigation. This dual – deck navigation light offers clear and reliable signaling, strictly adhering to international maritime regulations to keep your vessel on the right course.
Key Features and Advantages
Effortless Maintenance Design
- Quick – Access Bulb Replacement: The signal light is engineered with a user – friendly design that allows for easy and fast bulb replacement. This minimizes downtime during maintenance, ensuring that your navigation lights are always operational when you need them.
- Automatic Drainage Holes: To prevent water from accumulating inside the light fixture, we have incorporated automatic drainage holes. This feature safeguards the internal components from water damage, extending the lifespan of the signal light.
Ultra – Robust Construction
- High – Strength PA + GF Plastic Housing: The housing of the navigation light is made from high – strength PA + GF (polyamide + glass fiber) engineering plastic. This material is not only corrosion – proof but also highly impact – resistant, making it ideal for the harsh marine environment.
- Polycarbonate (PC) Lens: The lens is crafted from UV – stable polycarbonate. It maintains its clarity for years, even under prolonged exposure to sunlight, ensuring consistent light transmission and visibility.
Strict Regulatory Compliance
- Meets COLREG 1972: Our marine signal light fully complies with the International Regulations for Preventing Collisions at Sea (1972), also known as COLREG 1972. This ensures that your vessel’s signaling is in line with international standards, reducing the risk of collisions.
- Certified to GB/T 3028 – 1995 and Shipbuilding Standards: In addition to COLREG 1972, the signal light is also certified to GB/T 3028 – 1995 and relevant shipbuilding standards, providing an extra layer of quality assurance.
All – Weather Dependability
- Resistant to Harsh Conditions: The signal light can withstand salt spray, heavy rain, and extreme temperatures. Whether you’re sailing in tropical regions or cold, icy waters, this light will continue to function reliably.
- Non – Fading Optics: The optics of the signal light are designed to be non – fading, ensuring consistent light output over time. This is crucial for maintaining visibility and safety during long – distance voyages.
Technical Specifications
General Information
- Application: Suitable for vessels with a length of 50 meters or more.
- Housing Material: Reinforced PA + GF engineering plastic for durability.
- Lens Material: UV – resistant polycarbonate for long – lasting clarity.
- Drainage: Self – venting design to prevent water buildup.
- Standards: Compliant with COLREG 1972 and GB/T 3028 – 1995.
Detailed Specifications
| Name | Model | Lamp Holder | Bulb Options | Visibility (n.m) | Level Arc | Protection Class | Weight (kg) |
|---|---|---|---|---|---|---|---|
| Double – Deck Starboard Light | CXH1 – 101PN | p28s | 220V/2×65W, 110V/2×60W, 24V/2×60W | 3 | 112.5° | IP56 | 4.3 |
| Double – Deck Port Light | CXH2 – 101PN | p28s | 220V/2×65W, 110V/2×60W, 24V/2×60W | 3 | 112.5° | IP56 | 4.3 |
| Double – Deck Masthead Light | CXH3 – 101PN | p28s | 220V/2×65W, 110V/2×60W, 24V/2×60W | 6 | 225° | IP56 | 4.3 |
| Double – Deck Stern Light | CXH4 – 101PN | p28s | 220V/2×65W, 110V/2×60W, 24V/2×60W | 3 | 135° | IP56 | 4.3 |
| Double – Deck All – Round Light | CXH6 – 101PN | p28s | 220V/2×65W, 110V/2×60W, 24V/2×60W | 3 | 360° | IP56 | 4.3 |
In conclusion, the CXH1 – 101PN Marine Double – Deck Navigation Signal Light is a top – notch product that combines ease of maintenance, robust construction, regulatory compliance, and all – weather reliability. Choose it for your large vessel to ensure safe and efficient navigation at night.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
