ROTATING OILTIGHT HATCH COVER
Overall Diagrams

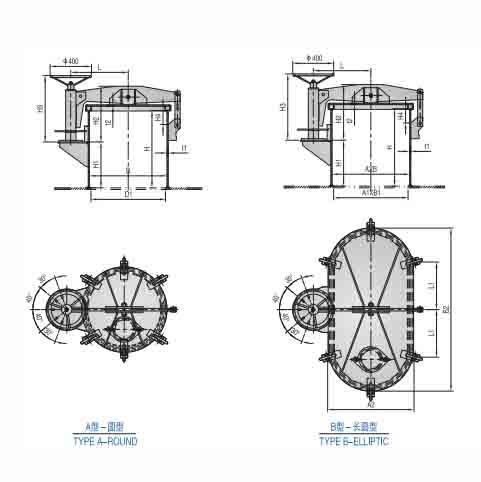

- Type A – Round: [Diagram showing front, side, and top views of the round – type rotating oil – tight hatch cover with dimensions labeled such as Φ400, L, H, H1, H2, H3, H4, t1, t, A, B, etc.]
- Type B – Elliptic: [Diagram showing front, side, and top views of the elliptic – type rotating oil – tight hatch cover with dimensions labeled such as Φ400, L, H, H1, H2, H3, H4, t1, t, A1×B1, A2×B2, etc.]
Specification Tables
Table for Type A – Round
| Type | Access – way Size (D) | Frame Opening Size (D1) | H | H1 | H2 | H3 | H4 | L | t1 | t | Number of Bolts | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 600 | 570 | 585 | 290 | 530 | 580 | 100 | 580 | 10 | 12 | 4 | 295 |
| A | 700 | 670 | 630 | 310 | 580 | 630 | 100 | 630 | 10 | 12 | 4 | 325 |
| A | 800 | 770 | 685 | 338 | 630 | 685 | 100 | 685 | 10 | 12 | 6 | 417 |
| A | 1000 | 970 | 785 | 385 | 730 | 785 | 100 | 785 | 12 | 14 | 6 | 539 |
| A | 1200 | 1170 | 885 | 435 | 830 | 885 | 120 | 885 | 12 | 14 | 12 | 630 |
Table for Type B – Elliptic
| Type | Access – way Size (A×B) | Frame Opening Size (A1×B1) | H | H1 | H2 | H3 | H4 | L | t1 | t | Number of Bolts | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | 750X1200 | 720X1170 | 635 | 335 | 585 | 635 | 100 | 585 | 10 | 12 | 4 | 543 |
| B | 750X1500 | 720X1470 | 685 | 360 | 635 | 685 | 100 | 635 | 10 | 12 | 6 | 593 |
Marking Example
For an A – type round oil – tight hatch cover with an access – way size of 600mm: Oil – tight hatch cover A 600 CB/T282 – 94.
