ALUMINIUM WATERTIGHT HATCH COVER
This product is suitable for parts of the ship’s exposed deck and storage hatches, etc. It has advantages such as light weight, good sealing performance, and flexible opening/closing.

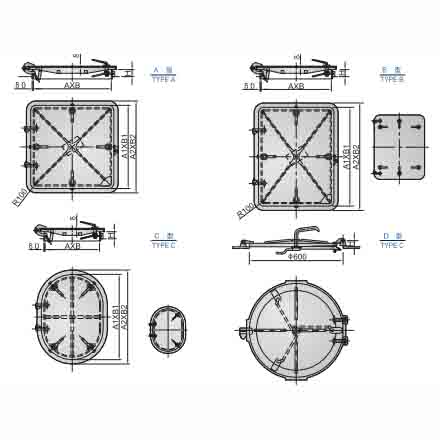

Product Diagrams
- Type A: [Diagram showing front, side, and top – view of Type A aluminium watertight hatch cover with dimensions labeled such as A×B, A1×B1, etc., and a cross – sectional view with dimensions 5.0, 50, R30, etc.]
- Type B: [Similar set of diagrams as Type A for Type B hatch cover]
- Type C: [Diagrams for Type C hatch cover with relevant dimensions]
- Type D: [Diagrams for Type D hatch cover with relevant dimensions, including a circular – shaped cover with diameter Φ600]
Specification Table
| Type | Access – way Size (A×B) | A1×B1 | A2×B2 | 5 | 50 | H |
|---|---|---|---|---|---|---|
| A | 500X500 | 532X532 | 588X588 | 3 | 4 | 50 |
| A | 600X600 | 632X632 | 688X688 | 3 | 4 | 50 |
| B | 450X600 | 482X632 | 538X688 | 3 | 4 | 50 |
| B | 650X800 | 686X836 | 738X888 | 4 | 4 | 50 |
| C | 350X500 | 382X532 | 438X588 | 3 | 4 | 50 |
| C | 450X600 | 482X632 | 538X688 | 3 | 4 | 50 |
| D | Φ600 | Φ636 | Φ640 | 3 | 2.5 | 27 |
Notes
Marking example: For a D – type aluminium watertight hatch cover with an access – way size of Φ600, it is marked as: Watertight hatch cover D Φ600 CB 732 – 68.
Attention please: The description may be different with the goods, please check with us when order.
