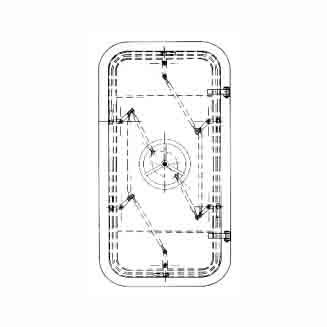

QUICK OPENING&CLOSING WEATHERTIGHT STEEL DOOR(HAND WHEEL TYPE)
262.YHS—022
| OPTION |
|---|
| BUMPER |
| DOOR CLOSER |
| C2 LOCK |
| ISPS DEVICE |
| LIMIT SWITCH |
| PORT LIGHT |
表格
| SIZE OF DOORWAY
B×L×R |
SIZE OF B.H. OPENING
B1×L1×R1 |
SIZE OF OUTLINE
B2×L2×R2 |
THICKNESS
T |
WEIGHT (KG) |
|---|---|---|---|---|
| 600×1500×100 | 700×1600×150 | 800×1700×200 | 6 | 145 |
| 600×1600×100 | 700×1700×150 | 800×1800×200 | 6 | 154 |
| 700×1500×100 | 800×1600×150 | 900×1700×200 | 6 | 167 |
| 700×1600×100 | 800×1700×150 | 900×1800×200 | 6 | 174 |
| 700×1700×100 | 800×1800×150 | 900×1900×200 | 6 | 183 |
| 800×1500×100 | 900×1600×150 | 1000×1700×200 | 8 | 208 |
| 800×1600×100 | 900×1700×150 | 1000×1800×200 | 8 | 223 |
| 800×1700×100 | 900×1800×150 | 1000×1900×200 | 8 | 249 |
AS INDICATION:
DOORWAY SIZE 600×1600, DOOR PLATE THICKNESS 6mm FOR FAST OPENING&CLOSING WEATHERTIGHT STEEL DOOR (RIGHT OUTSIDE OPENING)
FAST OPENING&CLOSING WEATHERTIGHT STEEL DOOR DF600×1600-8-5.1 262.YHS-022
Note: The description may be different with the product, please contact us for quotation.
