Quick Action Watertight Steel Door
262NYD004-00
Used for the doorway of superstructure above freeboard deck or deck house to meet ISO6042-1980.

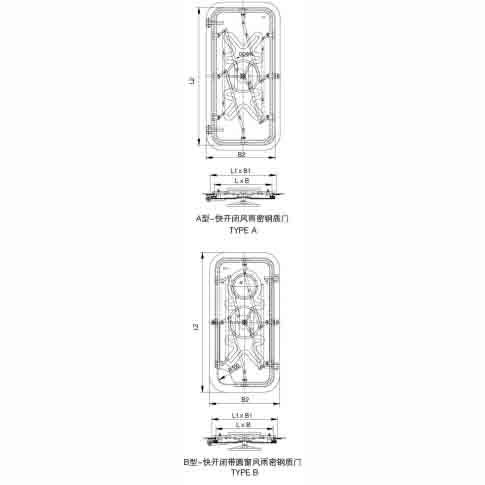

Type Nominal size L×B×R100 External size L2×B2×R150 Cutout in steel wall L1×B1×R200 Leaf thickness cm Weight kg
A 1200 × 600 1400 × 800 1300 × 700 6 124
1200 × 600 1400 × 800 1300 × 700 8 142
1400 × 600 1600 × 800 1500 × 700 6 133
1400 × 600 1600 × 800 1500 × 700 8 154
1400 × 600 1600 × 800 1500 × 700 10 165
1400 × 700 1600 × 900 1500 × 800 6 151
1400 × 700 1600 × 900 1500 × 800 8 177
1400 × 700 1600 × 900 1500 × 800 10 185
1500 × 600 1700 × 800 1600 × 700 6 142
1500 × 600 1700 × 800 1600 × 700 8 162
1500 × 600 1700 × 800 1600 × 700 10 172
1500 × 700 1700 × 900 1600 × 800 6 157
1500 × 700 1700 × 900 1600 × 800 8 187
1500 × 700 1700 × 900 1600 × 800 10 195
1500 × 800 1700 × 1000 1600 × 900 6 167
1500 × 800 1700 × 1000 1600 × 900 8 205
1500 × 800 1700 × 1000 1600 × 900 10 221
B 1600 × 600 1800 × 800 1700 × 700 6 146
1600 × 600 1800 × 800 1700 × 700 8 173
1600 × 600 1800 × 800 1700 × 700 10 181
1600 × 700 1800 × 900 1700 × 800 6 163
1600 × 700 1800 × 900 1700 × 800 8 194
1600 × 700 1800 × 900 1700 × 800 10 207
1600 × 800 1800 × 1000 1700 × 900 6 204
1600 × 800 1800 × 1000 1700 × 900 8 224
1600 × 800 1800 × 1000 1700 × 900 10 238
Identification example

Quick action weathertight steel door with clear size of B1600×800L, with fined light, left opening.
Quick action weathertight steel door B1600×800L 262NYD004.

Note: The description may be different with the product, please contact us for quotation.
