Quick Action Pressure Holding Door
Quick Action Pressure Holding Door
262NYD006-00
Used for watertight divisions with max. water pressure of 0.10MPa.

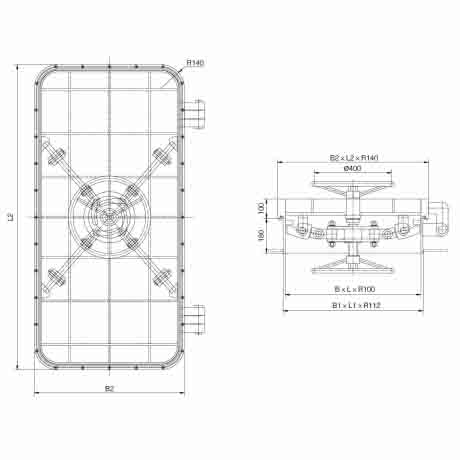

| No. | Nominal size B×L×R100 | Cutout in steel wall B1×L1×R112 | External size B2×L2×R140 |
|---|---|---|---|
| 1 | 700 × 1500 | 724 × 1524 | 780 × 1580 |
| 2 | 700 × 1400 | 724 × 1424 | 780 × 1480 |
| 3 | 600 × 1500 | 624 × 1524 | 680 × 1580 |
| 4 | 600 × 1400 | 624 × 1424 | 680 × 1480 |
Identification example
Quick action pressure holding door with clear size of 700×1500, right opening;
Quick action pressure holding door 700×1500R 262NYD006-00.
Note: The description may be different with the product, please contact us for quotation.
