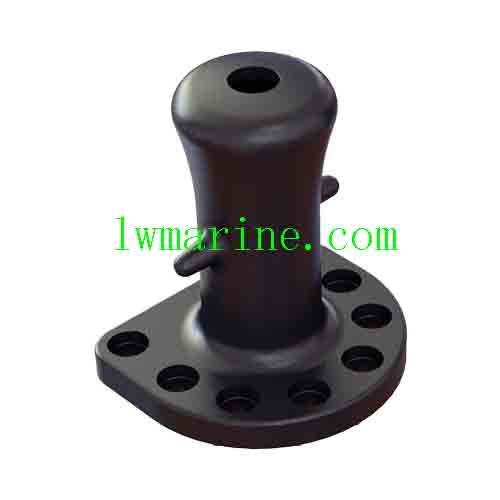

Single Bitt Post Bollard for Robust Mooring Solutions
Our Single Bitt Post Bollard stands as a highly reliable and commonly utilized style among mooring dock bollards, designed to provide exceptional strength and stability for marine and industrial mooring applications. In addition to this versatile single bitt bollard, we also offer a comprehensive range of other bollard styles, including Double Bitt Bollard, T-Head Bollard, Staghorn Shaped Bollard, Kidney Shaped Bollard, R CVI Type Bollard, and Y Type Bollard, among others. Our commitment lies in delivering high-quality products at competitive prices, coupled with excellent customer service. For detailed information or specific requirements, please feel free to contact us directly.
Key Features of Single Bitt Post Bollard:
- High Capacity Range: Capable of handling loads from 20 to 200 tonnes, ensuring versatility in various mooring scenarios.
- Flexible Bolt Configuration: Comes with 4 to 8 bolts, allowing for secure and adjustable installation.
- Durable Material Options: Constructed from cast steel, cast iron, or cast SG iron, providing robustness and longevity.
- Advanced Technology Data: Features a safe factor of 3 times, with a cable face angle ranging from -45° to +45° (vertical) and 0° to 180° (horizontal).
- Customizable Finishing Paint: Multiple color options available to match the specific needs of the dock or mooring area.
- 1-Year Quality Guarantee: Ensuring peace of mind and confidence in our product’s performance.
- Classification Certificates: Compliant with CCS, ABS, GL, NK, and other relevant standards, guaranteeing quality and safety.
- Customization Available: Tailored solutions to meet unique customer requirements and specifications.
Dimension Table for Single Bitt Post Bollard:
| Capacity (tonnes) | Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Bolts No. |
|---|---|---|---|---|---|---|---|
| 20 | SBD20 | 400 | 660 | 290 | 260 | 65 | 4 |
| 30 | SBD30 | 400 | 660 | 290 | 260 | 65 | 4 |
| 50 | SBD50 | 400 | 600 | 200 | 300 | 70 | 4 |
| 75 | SBD75 | 440 | 700 | 340 | 330 | 85 | 4 |
| 100 | SBD100 | 540 | 900 | 365 | 350 | 95 | 8 |
| 150 | SBD150 | 610 | 900 | 340 | 420 | 120 | 8 |
| 200 | SBD200 | 680 | 900 | 350 | 480 | 120 | 8 |
FAQs:
- Q: What is the maximum load capacity of the Single Bitt Post Bollard?
A: The Single Bitt Post Bollard can handle loads ranging from 20 to 200 tonnes, making it suitable for various mooring applications. - Q: What materials are used in the construction of the Single Bitt Post Bollard?
A: The bollard is constructed from durable materials such as cast steel, cast iron, or cast SG iron, ensuring longevity and strength. - Q: Can the finishing paint of the Single Bitt Post Bollard be customized?
A: Yes, we offer multiple color options for the finishing paint to match the specific needs of your dock or mooring area. - Q: Does the Single Bitt Post Bollard come with any quality guarantee?
A: Yes, our bollard comes with a 1-year quality guarantee, providing you with peace of mind regarding its performance. - Q: Are there any classification certificates for the Single Bitt Post Bollard?
A: Absolutely, our bollard is compliant with CCS, ABS, GL, NK, and other relevant standards, ensuring its quality and safety. - Q: Is it possible to customize the Single Bitt Post Bollard according to specific requirements?
A: Yes, we offer customization services to tailor the bollard to your unique needs and specifications, ensuring a perfect fit for your mooring application.
Please Note: The description might be incorrect, please contact us for confirmation.
