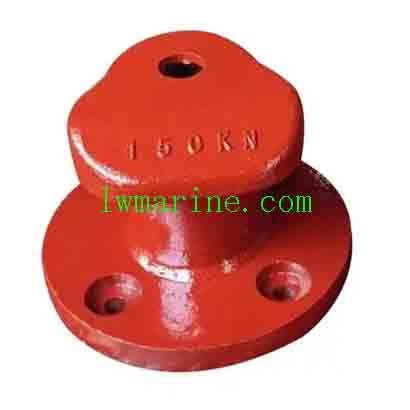

Curved Type Bollard

Our Curved Type Bollard combines ergonomic design with marine-grade durability, offering ports and marinas a bollard that marries form and function. The graceful curvature provides natural rope guidance while maintaining all the strength needed for secure vessel mooring.

Why Choose Our Curved Bollard?

✔ Engineered for Performance

Fluid curvature prevents rope chafing
Optimized angles for easy line handling
Multiple material options for every need

✔ Material Choices

Cast Iron: Classic durability (ideal for traditional docks)
Cast Steel: Maximum strength (for heavy commercial use)
Ductile Iron: Perfect balance (strength + flexibility)

✔ Complete Bollard Solutions
We supply all standard types:

Horn Type • Kidney Shaped • T-Head
R Type • Single/Double Bitts • Dock Cleats
Custom designs from your blueprints

Technical Specifications

Feature	Options
Model	Curved Type Bollards
Materials	Cast Iron/Cast Steel/Ductile Iron
Surface	Anti-corrosion treatment
Custom	Available per your drawings

Parameters:

Type	Weight	Size(mm)
Type	(kg)	D	H	T	L	B	h1	h2	h3
5T	70	150	170	20	300	350	30	60	120
10T	140	200	210	20	400	480	40	70	160
15T	245	250	250	20	500	600	50	80	200
25T	420	300	290	21	600	720	65	95	240
35T	440	300	290	25	600	720	65	95	240
50T	665	350	330	29	700	840	70	100	280
70T	1100	400	370	33	800	1000	90	120	320
100T	1670	450	410	39	900	1200	95	125	360
