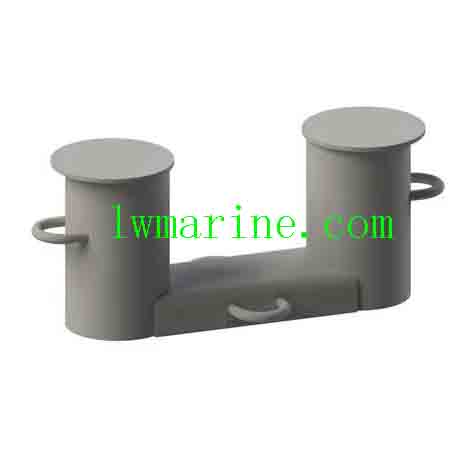

Double Bitt Bollard: A Sturdy and Customizable Dock Mooring Solution
The Double Bitt Deck Bollard, also known as a bollard with dual pillars, is a versatile marine mooring device designed to accommodate various dock structures, berthing capacities, and decorative preferences. Available in a range of shapes and sizes, this bollard can be crafted from either cast steel or cast iron, offering exceptional strength and durability. Customers have the flexibility to choose the material, surface paint, and dimensions according to their specific needs. We also provide customization services based on customer-provided drawings, ensuring a perfect fit for any dock mooring scenario.
In addition to the Double Bitt Bollard, we offer a wide selection of other bollard types, including Single Bitt Bollard, Cross Bollards, Kidney Type Bollard, Horn Type Bollard, T Type Bollard, and Welding Bollard. For more detailed information, please feel free to contact us directly.
Key Features of Double Bitt Bollard
- Long Working Life: Built to withstand the rigors of marine environments, ensuring extended service life.
- High Quality with Competitive Pricing: Offers exceptional value for money without compromising on quality.
- Customizable Options: Tailor-made to meet specific customer requirements, ensuring optimal performance.
- Material Options: Available in cast steel or cast iron, providing flexibility in material selection.
- Surface Paint Customization: Choose from a variety of surface paints to match your dock’s aesthetic.
Dimension Table for Double Bollard DIN 82607-1995
| Product No. | Type | Rated Towing Pull (kN) | d1*s1 (mm) | b (mm) | d2 (mm) | e±10 (mm) | h1 (mm) | h2 (mm) | s2 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| BDB-001 | D1 | 10 | 139.7*6.3 | 130 | 160 | 430 | 370 | 105 | 5 | 20.6 |
| BDB-002 | D2 | 20 | 219.1*8.0 | 180 | 242 | 570 | 475 | 115 | 6 | 52.3 |
| BDB-003 | D3 | 32 | 273.0*10.0 | 250 | 300 | 700 | 570 | 135 | 8 | 99.5 |
| BDB-004 | D5 | 50 | 323.9*10.0 | 300 | 355 | 880 | 670 | 150 | 8 | 145.4 |
| BDB-005 | D8 | 80 | 355.6*14.2 | 330 | 390 | 1050 | 780 | 175 | 10 | 259.4 |
| BDB-006 | D12 | 120 | 457.0*16.0 | 420 | 490 | 1200 | 860 | 195 | 16 | 437 |
| BDB-007 | D20 | 200 | 508.0*17.5 | 470 | 545 | 1350 | 970 | 230 | 16 | 571 |
| BDB-008 | D32 | 320 | 559.0*20.0 | 530 | 600 | 1400 | 1000 | 270 | 16 | 830 |
Additional Information
- Material: Steel
- Warranty: 2 Years
- Expected Working Time: 10-15 Years
- Certificates: ABS, LR, NK, GL, DNV, BV, CCS
- Custom Made: Available upon request
Frequently Asked Questions (FAQs)
Q1: What materials are available for the Double Bitt Deck Bollard?
A1: The Double Bitt Bollard can be made from either cast steel or cast iron, providing flexibility in material selection based on your specific needs.
Q2: Can I customize the dimensions of the Double Bitt Bollard?
A2: Absolutely! We offer customization services based on customer-provided drawings, ensuring a perfect fit for your dock mooring requirements.
Q3: What is the warranty period for the Double Bitt Deck Bollard?
A3: The Double Bitt Bollard comes with a 2-year warranty, covering any manufacturing defects.
Q4: How long can I expect the Double Bitt Bollard to last?
A4: With proper maintenance, the Double Bitt Bollard is designed to have a working life of 10-15 years, ensuring long-term reliability.
Q5: Are the Double Bitt Bollards certified by any maritime authorities?
A5: Yes, they are certified by leading maritime certification bodies such as ABS, LR, NK, GL, DNV, BV, and CCS, ensuring compliance with international safety standards.
Attention please: The description was copied from different cooperating manufacturers. The description may be different with the goods, please check with us when order.
