Piston Type Electric Whistle HSD-90

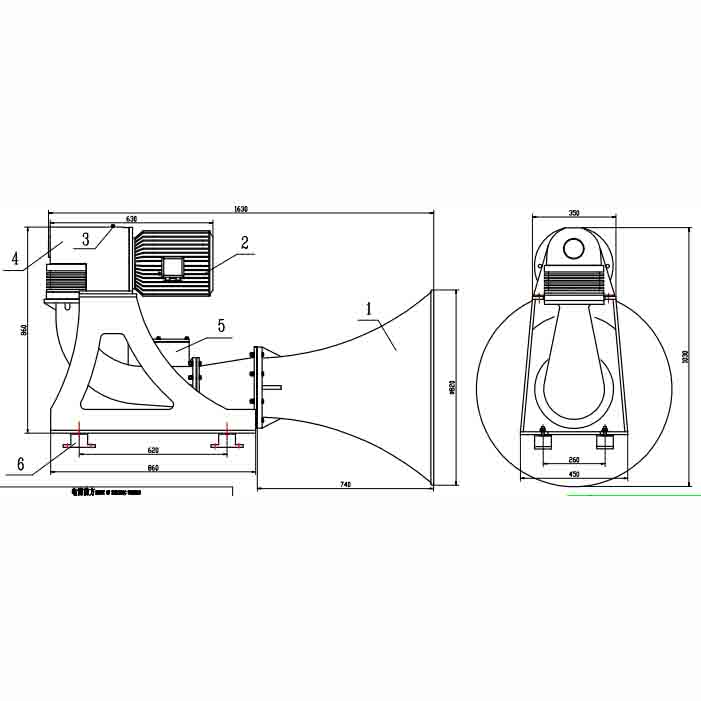

Outline and Installation Dimension Drawing
Component Markings
- Horn Body
- Motor
- Solenoid
- Protective Cover
- Bracket
- Installation Base
Technical Parameters
| Parameter | Specification |
|---|---|
| Audibility range | 2.0 mile |
| Sound pressure level | 143dB |
| Length of applicable vessel | ≥ 200 m |
| Motor power | 7.5kW |
| Heater power | 100W |
| Weight | 240 kg |
| Color | BG01 Medium Gray |
| Protection Class | IP56 |
| Quantity | 1 set |
| Specification | MC380/50Hz, MCA440/60Hz |
Note: The description may be different with the product, please contact us for quotation.
