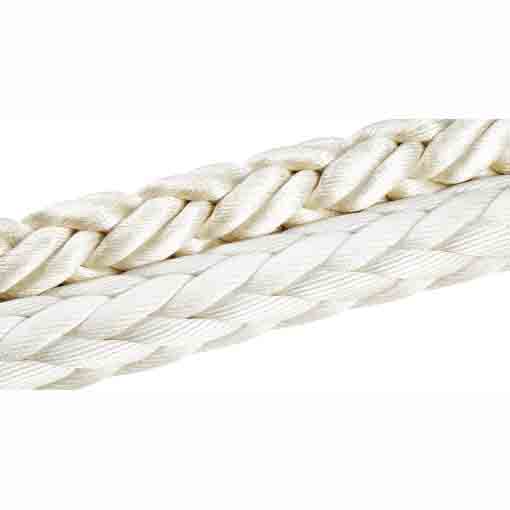

Nylon Rope

Nylon Rope

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Nylon Rope

General

  • Material: Nylon (Polyamide)

  • Density: 1.14 g/cm³, Sinking

  • Melting Point: 218-258℃

  • Elongation at Break: 19-23%

  • Abrasion Resistance: Excellent

  • UV Resistance: Good

  • Chemical Resistance: Good

  • Compliant with: OCIMF MEG4

Nylon Rope is a premium nylon rope known for its high strength, excellent elongation, and superior abrasion resistance. It is highly flexible and has excellent shock absorption properties. Compared with other chemical fiber ropes, it has better shock absorption, longer service life, better UV resistance, and chemical resistance.

Application

Ship mooring, pelagic fishing, deep sea aquaculture.

8-Strand and 12-Strand Technical Parameters (ISO MEG4)
Size (mm) Circumference (inch) Weight (kg/m) Weight (kg/220m) Type I Dry Strength – ISO MBF (kN) Type I Dry Strength – ISO MBF (Ton) Type I Wet Strength – ISO MBF (kN) Type I Wet Strength – ISO MBF (Ton) Type I MEG4 LDBF (kN) Type I MEG4 LDBF (Ton) Type II Dry Strength – ISO MBF (kN) Type II Dry Strength – ISO MBF (Ton) Type II Wet Strength – ISO MBF (kN) Type II Wet Strength – ISO MBF (Ton) Type II MEG4 LDBF (kN) Type II MEG4 LDBF (Ton)
24 3 355 78.1 127 13.0 97 9.9 N/A N/A N/A N/A N/A N/A N/A N/A
28 3 1/2 485 106.7 184 18.8 141 14.4 N/A N/A N/A N/A N/A N/A N/A N/A
32 4 635 139.7 235 24.0 180 18.3 N/A N/A N/A N/A N/A N/A N/A N/A
36 4 1/2 830 182.6 296 30.2 226 23.1 N/A N/A 463 47.2 354 36.1 N/A N/A
40 5 1000 220.0 367 37.4 281 28.6 N/A N/A 560 57.1 428 43.7 N/A N/A
44 5 1/2 1210 266.2 417 42.6 319 32.6 N/A N/A 684 69.8 523 53.3 N/A N/A
45 5 5/8 1248 274.6 437 44.6 334 34.1 N/A N/A 684 69.8 523 53.3 N/A N/A
48 6 1430 314.6 501 51.1 383 39.1 656 66.9 502 51.2 N/A N/A N/A N/A
50 6 1/4 1535 337.7 534 54.5 411 41.9 716 73.1 548 55.9 N/A N/A N/A N/A
52 6 1/2 1680 369.6 588 60.0 450 45.9 777 79.3 594 60.7 N/A N/A N/A N/A
55 6 7/8 1882 409.6 621 63.4 475 48.5 886 90.4 678 69.2 N/A N/A N/A N/A
56 7 2010 442.2 671 68.4 513 52.3 922 94.1 705 72.0 N/A N/A N/A N/A
60 7 1/2 2260 497.2 752 76.7 575 58.7 1032 105.3 789 80.6 N/A N/A N/A N/A
64 8 2500 554.4 841 85.8 643 65.6 1134 115.7 868 88.5 N/A N/A N/A N/A
65 8 1/8 2600 572.0 867 88.4 663 67.7 1170 119.4 895 91.3 N/A N/A N/A N/A
68 8 1/2 2800 629.2 963 97.2 729 74.4 1287 131.3 985 100.5 N/A N/A N/A N/A
70 8 3/4 3000 664.4 1000 102.0 765 78.1 1359 138.7 1040 106.1 N/A N/A N/A N/A
72 9 3300 726.0 1063 108.4 813 83.0 1485 151.5 1136 115.9 N/A N/A N/A N/A
75 9 3/8 3400 761.2 1115 113.8 853 87.0 1557 158.9 1191 121.5 N/A N/A N/A N/A
80 10 4000 886.6 1322 134.9 1011 103.2 1814 185.1 1388 141.6 N/A N/A N/A N/A
85 10 5/8 4450 979.7 1473 150.3 1127 115.0 2003 204.4 1532 156.4 N/A N/A N/A N/A
88 11 4780 1051.6 1582 161.4 1210 123.5 2055 209.7 1572 160.4 N/A N/A N/A N/A
90 11 1/4 4990 1097.8 1652 168.5 1264 129.0 2146 219.0 1642 167.5 N/A N/A N/A N/A
95 11 7/8 5560 1223.2 1841 187.8 1408 143.7 2280 232.7 1744 178.0 N/A N/A N/A N/A
96 12 5690 1251.8 1880 191.9 1445 147.5 2333 238.1 1785 182.1 N/A N/A N/A N/A
100 12 1/2 6160 1355.2 2034 207.5 1556 158.8 2526 257.8 1932 197.2 N/A N/A N/A N/A
104 13 6660 1465.2 2131 217.4 1630 166.3 2731 278.7 2089 213.2 N/A N/A N/A N/A
112 14 7720 1698.4 2488 253.8 1903 194.2 3165 323.0 2421 247.1 N/A N/A N/A N/A
120 15 8870 1951.4 2779 283.6 2126 216.9 3548 362.0 2714 277.0 N/A N/A N/A N/A

Note:

  • MBL = Minimum Breaking Force per ISO2307.

  • LDBF = Line Design Break Force per OCIMF MEG4 Appendix B.

  • Other sizes are available upon request.

Note: The description may be different with the product, please contact us for quotation.
