Non-Spark / Non-Magnetic Tools

Non-Spark / Non-Magnetic Tools

Place of Origin: Made In China
Delivery Time: 15-30 days
Click here to send inquiry via whatsapp

Category:

Non-Spark / Non-Magnetic Tools

(Note: All tools in this series are made of Beryllium Copper or Aluminum Bronze, which are non-sparking and non-magnetic. All dimensions are in mm.)

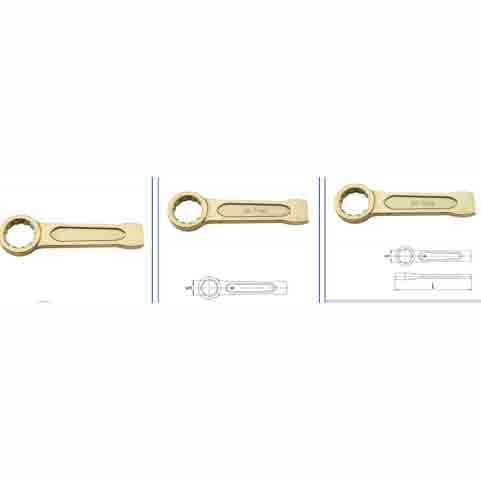

1001 Non-Spark Striking Box Wrench

Features: Directly strikes with a hammer, suitable for tightening or loosening hexagon screws and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number L(mm) S(mm) L(mm) S(mm)
1001-19 19 145 210 25
1001-22 22 160 235 30
1001-24 24 165 235 30
1001-27 27 170 250 35
1001-30 30 180 260 35
1001-32 32 195 280 40
1001-36 36 205 295 40
1001-41 41 225 325 45
1001-46 46 240 345 50
1001-50 50 250 360 55
1001-55 55 270 380 60
1001-60 60 285 405 65
1001-65 65 300 430 70
1001-70 70 320 460 80
1001-75 75 335 485 80
1001-80 80 355 510 85
1001-85 85 370 530 90
1001-90 90 390 555 95
1001-95 95 405 580 100
1001-100 100 420 600 105
1001-105 105 435 625 110
1001-110 110 455 650 115
1001-115 115 465 670 120
1001-120 120 485 695 125
1002 Non-Spark Open-End Striking Wrench

Features: Directly strikes with a hammer, suitable for tightening or loosening hexagon screws and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g) Number S(mm) L(mm) Weight(g)
1002-19 19 145 210 25 1002-95 95 370 530
1002-22 22 160 235 30 1002-100 100 390 555
1002-24 24 165 235 30 1002-105 105 405 580
1002-27 27 170 250 35 1002-110 110 420 600
1002-30 30 180 260 35 1002-115 115 435 625
1002-32 32 195 280 40 1002-120 120 455 650
1002-36 36 205 295 40 1002-125 125 465 670
1002-41 41 225 325 45 1002-130 130 485 695
1002-46 46 240 345 50 1002-135 135 500 720
1002-50 50 250 360 55 1002-140 140 515 740
1002-55 55 270 380 60 1002-145 145 520 745
1002-60 60 285 405 65 1002-150 150 540 775
1002-65 65 300 430 70 1002-155 155 555 795
1002-70 70 320 460 80 1002-160 160 570 820
1002-75 75 335 485 80 1002-165 165 580 845
1002-80 80 355 510 85 1002-170 170 595 860
1002-85 85 370 530 90 1002-180 180 635 890
1002-90 90 390 555 95 1002-190 190 700 1050
1002A Non-Spark Open-End Striking Wrench

Features: Directly strikes with a hammer, suitable for tightening or loosening hexagon screws and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Number S(mm) L(mm)
1002A-24 24 164 215 1002A-80 80 364 490
1002A-27 27 174 230 1002A-85 85 375 510
1002A-30 30 184 245 1002A-90 90 395 540
1002A-32 32 194 260 1002A-95 95 415 555
1002A-36 36 204 275 1002A-100 100 425 570
1002A-41 41 224 300 1002A-105 105 445 590
1002A-46 46 234 315 1002A-110 110 465 600
1002A-50 50 248 335 1002A-115 115 485 615
1002A-55 55 264 355 1002A-120 120 500 625
1002A-60 60 290 385 1002A-125 125 510 640
1002A-65 65 300 395 1002A-130 130 520 655
1002A-70 70 330 415 1002A-135 135 540 670
1002A-75 75 340 430 1002A-140 140 550 685
1003 Non-Spark Striking Box Wrench

Features: Directly strikes with a hammer, suitable for tightening or loosening hexagon screws and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number L(mm) S(mm) Weight(g) Number L(mm) S(mm) Weight(g)
1003-19 19 145 210 130 1003-100 100 405 580 3390
1003-22 22 160 235 190 1003-105 105 420 600 3660
1003-24 24 165 235 200 1003-110 110 435 625 3900
1003-27 27 170 250 220 1003-115 115 455 650 4200
1003-30 30 180 260 260 1003-120 120 465 670 4600
1003-32 32 195 280 330 1003-125 125 485 695 5050
1003-36 36 205 295 380 1003-130 130 500 720 5480
1003-41 41 225 325 540 1003-135 135 515 740 5940
1003-46 46 240 345 650 1003-140 140 520 745 6250
1003-50 50 250 360 770 1003-145 145 540 775 6800
1003-55 55 270 380 980 1003-150 150 555 795 7300
1003-60 60 285 405 1180 1003-155 155 570 820 7840
1003-65 65 300 430 1400 1003-160 160 580 845 8260
1003-70 70 320 460 1680 1003-165 165 595 860 8810
1003-75 75 335 485 1900 1003-170 170 635 890 9250
1003-80 80 355 510 2130 1003-180 180 700 1050 10250
1003-85 85 370 530 2400 1003-190 190 780 1100 11450
1003-90 90 390 555 2750 1003-200 200 860 1150 12900
1003-95 95 405 580 3120
1004 Non-Spark Striking Offset Striking Box Wrench

Features: Directly strikes with a hammer, suitable for tightening or loosening hexagon screws and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number L(mm) S(mm) Weight(g) Number L(mm) S(mm) Weight(g)
1004-19 19 145 210 190 1004-100 100 420 600 4140
1004-22 22 160 235 260 1004-105 105 435 625 4450
1004-24 24 165 235 270 1004-110 110 455 650 4800
1004-27 27 170 250 300 1004-115 115 465 670 5200
1004-30 30 180 260 360 1004-120 120 485 695 5700
1004-32 32 195 280 420 1004-125 125 500 720 6350
1004-36 36 205 295 490 1004-130 130 515 740 6800
1004-41 41 225 325 680 1004-135 135 520 745 7350
1004-46 46 240 345 850 1004-140 140 540 775 7950
1004-50 50 250 360 1020 1004-145 145 555 795 8500
1004-55 55 270 380 1270 1004-150 150 570 820 9250
1004-60 60 285 405 1500 1004-155 155 580 845 9800
1004-65 65 300 430 1850 1004-160 160 595 860 10300
1004-70 70 320 460 2200 1004-165 165 635 890 10800
1004-75 75 335 485 2550 1004-170 170 700 1050 12000
1004-80 80 355 510 2900 1004-180 180 780 1100 13500
1004-85 85 370 530 3300 1004-190 190 860 1150 15000
1004-90 90 390 555 3720 1004-200 200 950 1200 16500
1004-95 95 405 580 3900
1005 Non-Spark Offset Striking Box Wrench, American Type

Features: Directly strikes with a hammer, suitable for tightening or loosening hexagon screws and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number L(mm) S(mm) Weight(g) Number L(mm) S(mm) Weight(g)
1005-24 24 160 225 400 1005-95 95 390 555 2.13kg
1005-27 27 170 250 430 1005-100 100 405 580 2.66kg
1005-30 30 180 260 470 1005-105 105 420 600 2.95kg
1005-32 32 195 280 580 1005-110 110 435 625 3.15kg
1005-36 36 205 295 680 1005-115 115 455 650 3.45kg
1005-41 41 225 325 870 1005-120 120 465 670 3.70kg
1005-46 46 240 345 1020 1005-125 125 485 695 4.40kg
1005-50 50 250 360 1220 1005-130 130 500 720 4.95kg
1005-55 55 270 380 1480 1005-135 135 515 740 5.60kg
1005-60 60 285 405 1780 1005-140 140 520 745 6.20kg
1005-65 65 300 430 2100 1005-145 145 540 775 6.60kg
1005-70 70 320 460 2540 1005-150 150 555 795 6.80kg
1005-75 75 335 485 2950 1005-155 155 570 820 7.35kg
1005-80 80 355 510 3400 1005-160 160 580 845 7.95kg
1005-85 85 370 530 3900 1005-165 165 595 860 8.40kg
1005-90 90 390 555 4300 1005-170 170 635 890 9.85kg
1006 Non-Spark Striking Hexagon Wrench

Features: Directly strikes with a hammer, suitable for tightening or loosening hexagon screws and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g) Number S(mm) L(mm) Weight(g)
1006-17 17 145 210 190 1006-60 60 285 405 1300
1006-19 19 145 210 190 1006-65 65 300 430 1500
1006-22 22 160 235 250 1006-70 70 320 460 1900
1006-24 24 165 235 250 1006-75 75 335 485 2100
1006-27 27 170 250 280 1006-80 80 355 510 2400
1006-30 30 180 260 320 1006-85 85 370 530 2800
1006-32 32 195 280 420 1006-90 90 390 555 3300
1006-36 36 205 295 480 1006-95 95 405 580 3700
1006-41 41 225 325 660 1006-100 100 420 600 4100
1006-46 46 240 345 780 1006-105 105 435 625 4400
1006-50 50 250 360 920 1006-110 110 455 650 4800
1006-55 55 270 380 1120 1006-115 115 465 670 5300
1006-57 57 280 400 1190 1006-120 120 485 695 5900
1007 Non-Spark Heavy-Duty Striking Box Wrench

Features: Directly strikes with a hammer, suitable for tightening or loosening hexagon screws and nuts. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g) Number S(mm) L(mm) Weight(g)
1007-27 27 180 255 450 1007-90 90 390 555 3.95kg
1007-30 30 190 275 500 1007-95 95 405 580 4.40kg
1007-32 32 200 290 600 1007-100 100 420 600 4.90kg
1007-36 36 220 320 750 1007-105 105 435 625 5.35kg
1007-41 41 240 345 950 1007-110 110 455 650 5.90kg
1007-46 46 250 360 1050 1007-115 115 465 670 6.45kg
1007-50 50 270 380 1300 1007-120 120 485 695 7.05kg
1007-55 55 285 405 1500 1007-125 125 500 720 7.65kg
1007-60 60 300 430 1800 1007-130 130 515 740 8.25kg
1007-65 65 320 460 2150 1007-135 135 520 745 8.75kg
1007-70 70 335 485 2450 1007-140 140 540 775 9.35kg
1007-75 75 355 510 2850 1007-145 145 555 795 9.95kg
1007-80 80 370 530 3250 1007-150 150 570 820 10.65kg
1007-85 85 390 555 3600 1007-155 155 580 845 11.25kg
1007-90 90 405 580 3940 1007-160 160 595 860 11.90kg
1009 Non-Spark Offset Striking Box Wrench, Convex Top

Features: Strikes with a hammer, convex top for direct striking without auxiliary striking. Directly hits the hexagon screw or nut, with the side of the box wrench. Striking face with convex top. Material: Aluminum Bronze/Beryllium Copper.

Number L(mm) S(mm) Weight(g) Number L(mm) S(mm) Weight(g)
1009-32 32 180 255 430 1009-95 95 360 535 3.70kg
1009-36 36 195 280 510 1009-100 100 375 555 4.10kg
1009-41 41 210 300 660 1009-105 105 390 580 4.70kg
1009-46 46 225 325 860 1009-110 110 405 600 5.20kg
1009-50 50 240 345 980 1009-115 115 415 620 5.80kg
1009-55 55 255 370 1150 1009-120 120 430 640 6.40kg
1009-60 60 270 385 1360 1009-125 125 445 660 7.00kg
1009-65 65 285 410 1680 1009-130 130 460 680 7.60kg
1009-70 70 300 430 2000 1009-135 135 480 710 8.30kg
1009-75 75 315 455 2380 1009-140 140 495 730 9.00kg
1009-80 80 330 480 2750 1009-145 145 510 750 9.70kg
1009-85 85 345 495 3180 1009-150 150 530 775 10.40kg
1009-90 90 360 520 3650
1010 Non-Spark Convex Top Single End Hammer Wrench

Features: Strikes with a hammer, convex top for direct striking without auxiliary striking. Hexagonal opening on one side, tightening on the other side, single end hammer wrench. The striking face is a convex bump. Material: Aluminum Bronze/Beryllium Copper.

Number S(mm) L(mm) Weight(g) Number S(mm) L(mm) Weight(g)
1010-19 19 145 210 230 1010-75 75 310 455 2.40kg
1010-22 22 160 235 290 1010-80 80 330 480 2.80kg
1010-24 24 165 235 300 1010-85 85 350 505 3.20kg
1010-27 27 170 250 330 1010-90 90 365 520 3.65kg
1010-30 30 180 260 380 1010-95 95 380 535 4.10kg
1010-32 32 195 280 480 1010-100 100 395 560 4.70kg
1010-36 36 205 295 580 1010-105 105 410 585 5.30kg
1010-41 41 225 325 780 1010-110 110 425 605 5.90kg
1010-46 46 240 345 950 1010-115 115 440 630 6.50kg
1010-50 50 250 360 1120 1010-120 120 455 655 7.10kg
1010-55 55 270 380 1350 1010-125 125 475 675 7.70kg
1010-60 60 285 405 1600 1010-130 130 495 695 8.30kg
1010-65 65 300 430 1900 1010-135 135 515 715 8.90kg
1010-70 70 320 460 2300 1010-140 140 525 735 9.60kg

Note: The description may be different with the product, please contact us for quotation.
