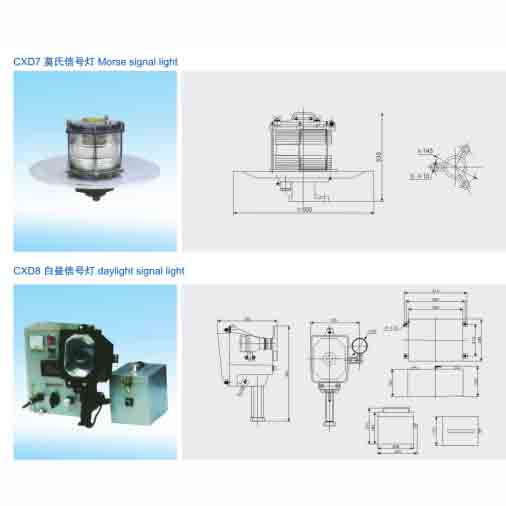

Morse signal light / Daylight signal light
Specifications
| Name | Type | Voltage | Power | Lamp holder | Weight | Protection class | Visible Visibility | Level arc |
|---|---|---|---|---|---|---|---|---|
| Morse signal light | CXD7 | 220V / 110V | 25W×3 | B22d | 6.4kg | IP55 | >5 n.m. | 360° |
| Daylight signal light | CXD8 | 24V | 60W | G6.35 | 2.6kg | IP44 | >2 n.m. | – |
Remarks / Features
CXD7 fits for Morse signal light communication of ships. Its optical, electric and mechanical performance all conform to IEC and CCS standards, and its shell materials are cast aluminium and steel.
CXD8 fits for daylight communication between ships above 150t, conforms to JIS. With cast aluminium shell and mechanical flash device, it can additionally be equipped with a 24V charger and battery box (110V, 60Hz; 220V, 50Hz).
Note: The description may be different with the product, please contact us for quotation.
