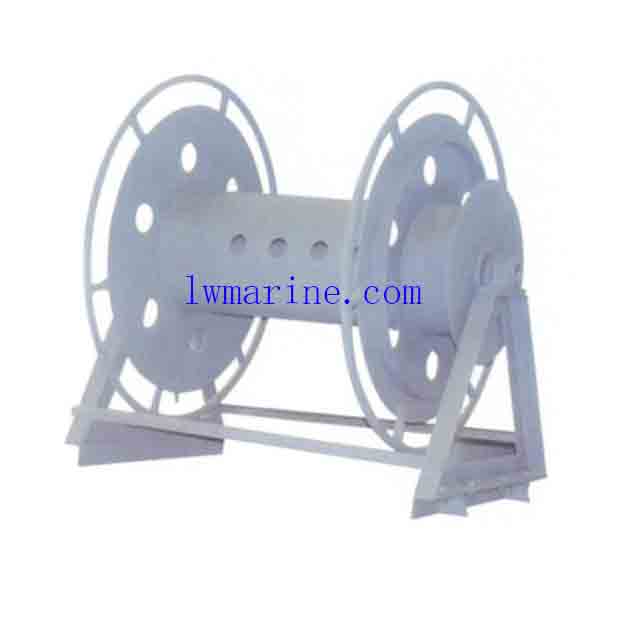

Our Mooring Synthetic Fiber Rope Reel is expertly designed for efficient marine rope storage and containment on ships’ decks, ensuring organized and secure rope management. This versatile rope winder is suitable for both steel wire ropes and synthetic fiber ropes, providing a reliable solution for various mooring applications.
Key Specifications:
- Drive Options: Hand-operated, Electric, or Hydraulic for versatile use.
- Configuration: Single drum design for straightforward operation.
- Rope Types: Compatible with steel wire rope and fiber rope drums.
- Rated Pull (1st Layer): Ranges from 2 to 20 metric tons (MT), accommodating different load requirements.
- Wire Speed: Up to 30 meters per minute for rapid rope deployment and retrieval.
- Control System: Local control for easy and precise operation.
- Design Service: Custom design solutions available to meet specific needs.
- Warranty: 12-month warranty for peace of mind.
- Third-Party Certificates: Compliant with CCS, ABS, GL, NK, BV, LR, DNV, and RINA standards, ensuring quality and safety.
- Delivery Time: Typically 20 days for marine mooring rope reels, depending on order quantity.
- Packaging: Securely packaged in wooden cases or with pallets for safe transportation.
Special Purpose Winches:
In addition to our CB/T 498-95 Marine Mooring Rope Reel, we offer a range of special-purpose winches, including streamer winches, gun winches, wire spooling winches, and auxiliary pulling winches. Our custom-made solutions are tailored to meet unique offshore applications, providing flexibility and reliability in challenging marine environments.

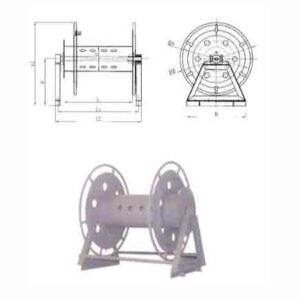

CB/T 498-95 Mooring Synthetic Fiber Rope Reel – Deck-Mounted Rope Storage/Rope Winder:
| DIA (mm) | D (mm) | D1 (mm) | D2 (mm) | L (mm) | L1 (mm) | B (mm) | B1 (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|
| 30 | 190 | 650 | 820 | 750 | 930 | 650 | 630 | 520 |
| 34 | 190 | 650 | 820 | 860 | 1046 | 650 | 630 | 520 |
| 38 | 190 | 650 | 820 | 880 | 1056 | 650 | 630 | 520 |
| 42 | 255 | 810 | 980 | 850 | 1046 | 820 | 650 | 575 |
| 46 | 255 | 810 | 980 | 930 | 1126 | 820 | 650 | 575 |
| 50 | 325 | 970 | 1140 | 910 | 1108 | 980 | 800 | 655 |
| 54 | 325 | 970 | 1140 | 930 | 1128 | 980 | 800 | 655 |
| 60 | 405 | 1150 | 1320 | 905 | 1108 | 1140 | 800 | 745 |
| 72 | 490 | 1330 | 1500 | 920 | 1132 | 1310 | 1020 | 830 |
Note: The description might be incorrect, please contact us for confirmation.
