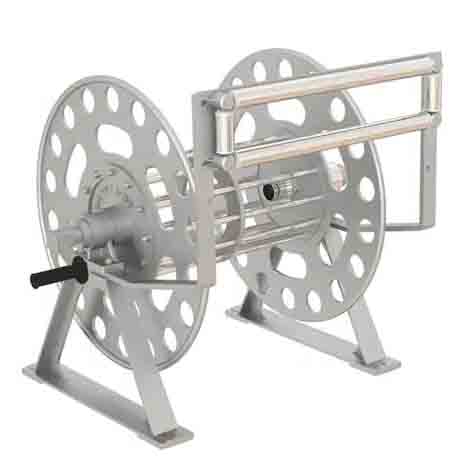

Heavy-Duty Manual Winding Reel | Portable Cable Winches & Rope Drums
Engineered for reliable performance in industrial and marine applications, our manual winding reel provide efficient cable and rope management solutions for lifting, pulling, and tensioning operations. These robust portable winches feature ergonomic handles and durable construction, making them ideal for maintenance, construction, and emergency response scenarios where power sources are unavailable or impractical.
Product Highlights & Key Features:
-
Heavy-Duty Manual Operation: Reliable performance without external power requirements
-
Ergonomic Handle Design: Comfortable operation with controlled handle force requirements
-
High-Capacity Rope Storage: Ample rope capacity for extended reach applications
-
Precision Speed Control: Optimized average speed per revolution for safe operation
-
Robust Steel Construction: Durable build quality for long-term industrial use
-
Portable & Compact Design: Easy transport and storage across job sites
-
Multiple Capacity Options: Available in five models from 100kg to 2000kg rated capacity
Technical Specifications:
| Model Specification | WR100 | WR250 | WR500 | WR1000 | WR2000 |
|---|---|---|---|---|---|
| Rated Capacity (kg) | 100 | 250 | 500 | 1000 | 2000 |
| Rope Diameter (mm) | 4 | 6 | 8 | 11 | 13 |
| Rope Capacity (m) | 10 | 15 | 15 | 15 | 15 |
| Average Speed (mm/revolution) | 50 | 40 | 20 | 10 | 5 |
| Maximum Handle Force (kg) | ≤8 | ≤10 | ≤10 | ≤15 | ≤15 |
| Net Weight (kg) | 28 | 32 | 35 | 86 | 90 |
| Dimensions (L×W×H mm) | 380×370×410 | 400×380×440 | 400×380×440 | 460×520×540 | 600×520×540 |
Applications & Industries:
-
Industrial Maintenance & Repair
-
Construction Site Material Handling
-
Marine & Shipboard Operations
-
Emergency & Rescue Equipment
-
Utility Line Installation & Maintenance
-
Theatrical & Stage Rigging Systems
Please Note: The description might be incorrect, please contact us for confirmation.
