MARINE WORK LIGHT
Product Images and Dimensional Diagrams

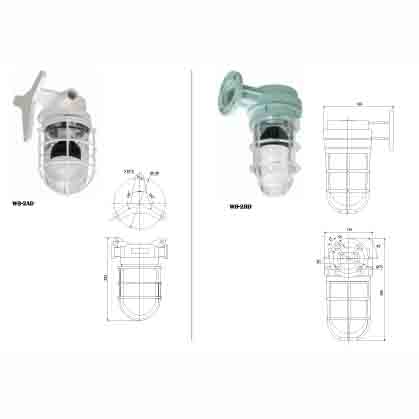

[The image displays two types of work lights, WB – 2AD and WB – 2BD, each shown with a front – view photo, a side – view photo, and a dimensional diagram. The diagrams include detailed measurements such as overall height, diameter, and other size – related specifications.]
Applicable Scope
This series of lights is suitable for ships with water – dripping, water – splashing, and wet – weather operations, such as engine rooms, dry cargo holds, pipelines, and weather decks.
WB – 2AD Specifications
| Item | Detail |
|---|---|
| Type | WB – 2AD |
| Rated Voltage | AC36V/220V 50Hz |
| Power | 100W |
| Power Factor | ≥0.4 |
| Illuminant | LED Bulb/LED Bay |
| Color | White |
| Luminous Flux | 1170lm |
| Color Rendering Index | / |
| Color Temperature | 6500K (Optional: 3000K, 4000K, 5000K) |
| Protection Class | IP56 |
| Cable Outside Diameter | φ10 – φ14 |
| Installation Method | Wall – mounted Type |
| Ambient Temperature | -25℃ – +55℃ |
| Lamp Body Material | High – Quality Marine Aluminum Alloy |
| Lamp Shade Material | Engineering Plastics PC |
| Weight | 5.0kg |
WB – 2BD Specifications
| Item | Detail |
|---|---|
| Type | WB – 2BD |
| Rated Voltage | AC36V/220V 50Hz |
| Power | 100W |
| Power Factor | ≥0.4 |
| Illuminant | Incandescent Bulb |
| Color | White |
| Luminous Flux | / |
| Color Rendering Index | / |
| Color Temperature | / |
| Protection Class | IP23 |
| Cable Outside Diameter | φ10 – φ14 |
| Installation Method | Wall – mounted Type |
| Ambient Temperature | -25℃ – +55℃ |
| Lamp Body Material | Brass |
| Lamp Shade Material | Glass |
| Weight | 3.0kg |
Attention please: The description may be different with the product, please contact us for quotation.
