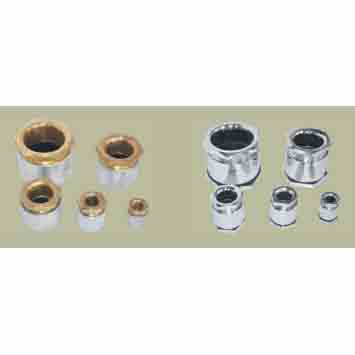

Marine Stuffing Box & Bracket
Stuffing Boxes
采用标准 Standards supplied: GB/T3667. 1-1995
材质可客户选做 The materials can be Chosen By customers
Sandwich type stuffing box (TJ)
单位 Units: mm
| 型号规格 type | Φ1 | 配用电缆外径 Outside diameter of cable | d1 | H | D |
|---|---|---|---|---|---|
| TJ8 | 8 | 5~7 | M14×1 | 10 | 10 |
| TJ13 | 13 | 6~12 | M18×1 | 11 | 11 |
| TJ16 | 16 | 11~15 | M22×1 | 11 | 11 |
| TJ19 | 19 | 14~18 | M27×1.5 | 14 | 14 |
| TJ24 | 24 | 17~23 | M30×1.5 | 14 | 14 |
| TJ28 | 28 | 21~27 | M33×1 | 14 | 14 |
| TJ34 | 34 | 26~33 | M42×2 | 14 | 14 |
| TJ42 | 42 | 32~41 | M48×2 | 14 | 14 |
| TJ50 | 50 | 40~49 | M58×2 | 20 | 20 |
| TJ58 | 58 | 48~57 | M68×2 | 20 | 20 |
Welding type stuffing box (TH)
单位 Units: mm
| 型号规格 type | Φ1 | Φ2 | 配用电缆外径 Outside diameter of cable | D1 | H |
|---|---|---|---|---|---|
| TH8 | 8 | 13 | 5~7 | 20 | 6 |
| TH13 | 13 | 17 | 6~12 | 25 | 8 |
| TH16 | 16 | 22 | 11~15 | 32 | 8 |
| TH19 | 19 | 25 | 14~18 | 36 | 2.6 |
| TH24 | 24 | 30 | 17~23 | 42 | 10 |
| TH28 | 28 | 35 | 22~27 | 48 | 12 |
| TH34 | 34 | 42 | 26~33 | 54 | 18 |
| TH42 | 42 | 50 | 32~41 | 62 | 18 |
| TH50 | 50 | 58 | 40~49 | 70 | 8 |
| TH58 | 58 | 66 | 48~57 | 78 | 8 |
★ 注: 可按用户要求来特加工，如 “加长” 型、“超薄”型。
We can react according to the requirement of user, such as lengthen type/ultrathin type.
尺寸H=2.5倍于箱体上。H=8;12;16用于舱壁上，如有特殊要求, 应订货时注明。
A: H=2.5 times of stuffing box, H=8;12;16 used for bulkhead, Please specify when ordering.
Note: The description may be different with the product, please contact us for quotation.
