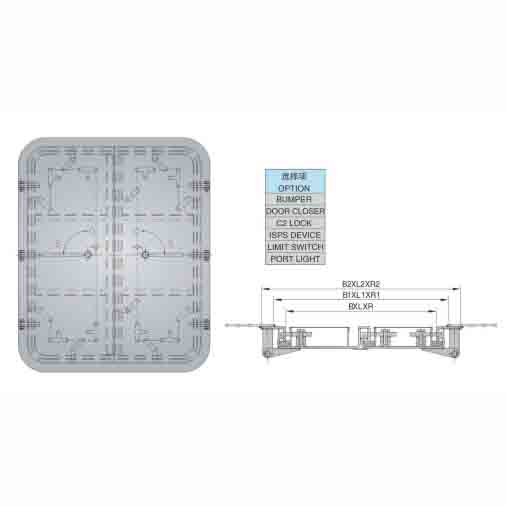

MARINE STEEL DOUBLE-LEAF QUICK ACTION WEATHERTIGHT DOOR
262 HSW 003MS-00
OPTION
-
BUMPER
-
DOOR CLOSER
-
C2 LOCK
-
ISPS DEVICE
-
LIMIT SWITCH
-
PORT LIGHT
| 通孔尺寸 SIZE OF DOORWAY BXL |
围壁开孔尺寸 SIZE OF B.H.OPENING B1XL1XR1 |
外形尺寸 SIZE OF OUTLINE B2XL2 |
门板厚度 THICKNESS |
重量 WEIGHT KG |
|---|---|---|---|---|
| 1000X1600XR100 | 1100X1700XR150 | 1200X1800XR200 | 6 | 203 |
| 8 | 241 | |||
| 1200X1600XR100 | 1300X1700XR150 | 1400X1800XR200 | 6 | 230 |
| 8 | 265 | |||
| 1000X1700XR100 | 1100X1800XR150 | 1200X1900XR200 | 6 | 216 |
| 8 | 247 | |||
| 1200X1700XR100 | 1300X1800XR150 | 1400X1900XR200 | 6 | 241 |
| 8 | 278 | |||
| 1200X1800XR100 | 1300X1900XR150 | 1400X2000XR200 | 6 | 250 |
| 8 | 289 |
Marking example:
Opening size is 1000X1600, door leaf thickness is 8mm, steel double-leaf quick action weathertight door,
steel double-leaf quick action weathertight door 1000X1600-8-5.1&6.1
Note: The description may be different with the product, please contact us for quotation.
