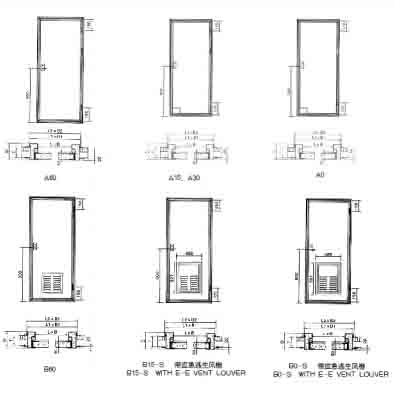

MARINE SINGLE LEAF FIREPROOF DOOR

CB*3234—84

262_YHS—001

表格

CLASS	SIZE OF DOORWAY L×B	FRAME SIZE L1×B1	SIZE OF B.H. OPENING L2×B2	T	D	WEIGHT KG A0	WEIGHT KG A15	WEIGHT KG A30	WEIGHT KG A60
A	1650×600	1750×700	1755×705	1.5	1.5	101.25	106.53	112.26	–
A	1650×650	1750×750	1755×755	1.5	1.5	104.31	111.17	117.83	–
A	1650×700	1750×800	1755×805	1.5	1.5	107.4	117.43	123.9	–
A	1650×750	1750×850	1755×855	1.5	1.5	110.7	122.1	129.04	–
A	1650×800	1750×900	1755×905	1.5	1.5	113.9	127.12	134.26	–
A	1700×600	1800×700	1805×705	1.5	1.5	103.29	108.41	115.21	–
A	1700×650	1800×750	1805×755	1.5	1.5	106.52	113.21	121.01	–
A	1700×700	1800×800	1805×805	1.5	1.5	109.7	118.24	126.74	–
A	1700×750	1800×850	1805×855	1.5	1.5	112.9	123.1	132.4	–
A	1750×600	1850×700	1855×705	1.5	1.5	105.4	110.51	117.5	–
A	1750×650	1850×750	1855×755	1.5	1.5	108.6	115.31	123.2	–
A	1750×700	1850×800	1855×805	1.5	1.5	111.7	120.24	128.84	–
A	1750×750	1850×850	1855×855	1.5	1.5	114.9	125.1	134.4	–
A	1800×600	1900×700	1905×705	1.5	1.5	107.5	112.61	119.7	–
A	1800×650	1900×750	1905×755	1.5	1.5	110.7	117.41	125.4	–
A	1800×700	1900×800	1905×805	1.5	1.5	113.9	122.34	131.04	–
A	1800×750	1900×850	1905×855	1.5	1.5	117.1	127.2	136.7	–
A	1850×600	1950×700	1955×705	1.5	1.5	109.6	114.71	121.9	–
A	1850×650	1950×750	1955×755	1.5	1.5	112.7	119.51	127.6	–
A	1850×700	1950×800	1955×805	1.5	1.5	115.9	124.44	133.24	–
A	1850×750	1950×850	1955×855	1.5	1.5	119.1	129.3	138.9	–
*	*	*	*	T=4.5	*	*	*	*	*

表格

CLASS	SIZE OF DOORWAY L×B	FRAME SIZE L1×B1	SIZE OF B.H. OPENING L2×B2	T	D	WEIGHT KG A0	WEIGHT KG A15
A	1650×600	1730×680	1735×685	1.5	1.5	95.56	95.01
A	1650×650	1730×730	1735×735	1.5	1.5	98.04	100.1
A	1650×700	1730×780	1735×785	1.5	1.5	101.15	104.93
A	1650×750	1730×830	1735×835	1.5	1.5	103.83	109.84
A	1650×800	1730×880	1735×885	1.5	1.5	106.42	114.85
A	1700×600	1780×680	1785×685	1.5	1.5	97.24	97.48
A	1700×650	1780×730	1785×735	1.5	1.5	99.87	102.56
A	1700×700	1780×780	1785×785	1.5	1.5	102.72	107.71
A	1700×750	1780×830	1785×835	1.5	1.5	105.36	112.72
A	1700×800	1780×880	1785×885	1.5	1.5	108.11	117.77
A	1750×600	1830×680	1835×685	1.5	1.5	99.11	99.65
A	1750×650	1830×730	1835×735	1.5	1.5	101.47	105.19
A	1750×700	1830×780	1835×785	1.5	1.5	104.18	110.35
A	1750×750	1830×830	1835×835	1.5	1.5	106.98	115.49
A	1800×600	1880×680	1885×685	1.5	1.5	101.13	102.51
A	1800×650	1880×730	1885×735	1.5	1.5	103.65	107.75
A	1800×700	1880×780	1885×785	1.5	1.5	106.23	113.03
A	1800×750	1880×830	1885×835	1.5	1.5	108.8	118.3
A	1850×600	1930×680	1935×685	1.5	1.5	103.47	104.9
A	1850×650	1930×730	1935×735	1.5	1.5	106.14	110.28
A	1850×700	1930×780	1935×785	1.5	1.5	107.31	115.78
A	1850×750	1930×830	1935×835	1.5	1.5	120.23	121.45
A	1850×800	1930×880	1935×885	1.5	1.5	123.04	126.82
*	*	*	*	T=4.5	*	*	*

Note: The description may be different with the product, please contact us for quotation.
