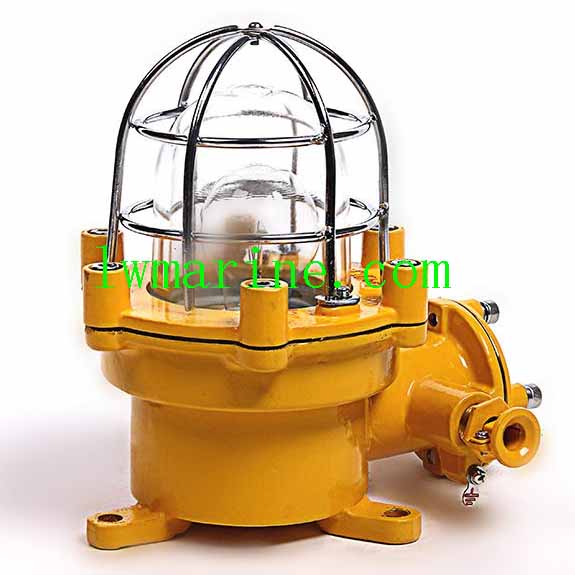

Marine Explosion Proof Light
Explosion-Proof Certification
▪ Hazardous Zone Compliance:
- Zone 1 & 2 (Gas Groups IIA, IIB, IIC)
- Temperature Class T1-T6 (-20°C to +80°C)▪ Global Approvals:
- IECEx & ATEX Certified
- Marine Classification Society Compliant
Robust Construction
▪ Housing: Marine-grade brass body
▪ Sealing: Dual IP66/IP67 protection
- Complete dust exclusion
- Submersible to 1m depth
Optical Performance
▪ Light Source:
- Incandescent lamp technology
- 360° omnidirectional illumination▪ Beam Characteristics:
- Anti-glare design
- Vibration-resistant filament
Installation Flexibility
▪ Mounting: Bulkhead or pendant
▪ Applications:
- Engine rooms (flammable vapor areas)
- Cargo holds
- Refinery platforms
- Chemical tankers
Marine Explosion Proof Light
Parameters:
| Item Number | CFD4-a | CFD4-b | CFD4-c | |||
| Explosion-proof Mark | Ex db IIC T4 Gb | Ex db IIC T6 Gb | Ex db IICT3 Gb | |||
| Rated Voltage | AC110V/220V/230V 50/60Hz | AC110V/220V/230V 50/60Hz | AC110V/220V/230V50/60Hz | |||
| DC24V | DC24V | DC24V | ||||
| Power | 60W | 25W | 100W | |||
| Luminous Flux | 310lm | 1351m | 550lm | |||
| Illuminant | Incandescent Lamp | |||||
| Cable Outside Diameter | 10mm～16mm | |||||
| Lamp Body Material | Stainless Steel | |||||
| Lamp Shade Material | Toughened Glass | |||||
| Installation Method | Ceiling-mounted Type, Pedestal Type | |||||
| Ambient Temperature | -40℃~+55℃ | |||||
| Lamp Holder | E27 | |||||
| Protection Class | IP66/IP67 | |||||
| Weight | 6.5kg | |||||
| Certification | IECEX and ATEX Certification | |||||
FAQ:
Q1: what is your delivery time?
A: Generally it is 15 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q2: What is your term of payment?
A: If the total amount is less 5000USD, T/T 100% in alibaba account to gurantee your goods. If the total amount is over
5000USD, T/T 50% as deposit, and 50% before delivery.
Q3: What is your terms of delivery?
A: We support EXW, FOB, CFR, CIF.
The description/sizes may be different with goods, please check with us when order.
